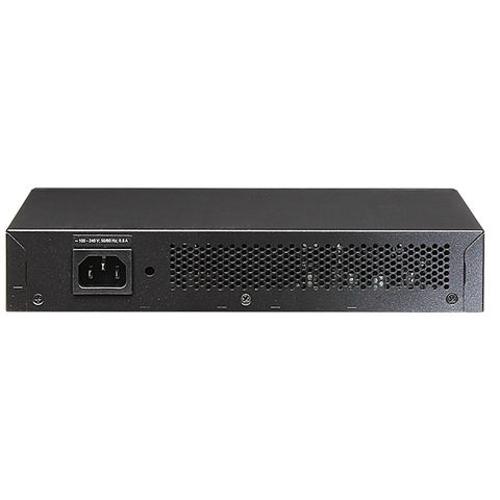

S1700 Series 24 Gigabit ports switch S1724G-AC switch
Short Description:
| Model | |
| S1700-8-AC | |
| S1700-24-AC | |
| S1700-52R-2T2P-AC | |
| S1700-8G-AC | S1724G |
| Downlink port | |
| 8 Ethernet 10/100 ports | |
| 24 Ethernet 10/100 ports | |
| 48 Ethernet 10/100 ports | |
| 8 Ethernet 10/100/1000 ports | 24 Ethernet 10/100/1000 ports |
| Uplink port | |
| Shared with downlink ports | |
| Shared with downlink ports | |
| 2 Ethernet 10/100/1000 ports and 2 Gig SFP | |
| Shared with downlink ports | |
| Shared with downlink ports | |
| MAC address table | 8 K MAC |
| Dimensions mm (W*D *H) | |
| 160*134*30 | |
| 320*208*43.6 | |
| 442*220*43.6 | |
| 160*134*30 | 330*208*43.6 |
| Input voltage | 100 V to 240 V AC, 50/60 Hz |
| EEE | NA |
| Powerconsumption | |
| <5W | |
| <15W | |
| <25W | |
| <10W | |
| <15W | |
| Operating temperature | 0°C to 45°C |
| Humidity (non-condensing) | |
| 10%~90% | 5%~90% |
| Heat dissipation | Fan-free natural heat dissipation |
