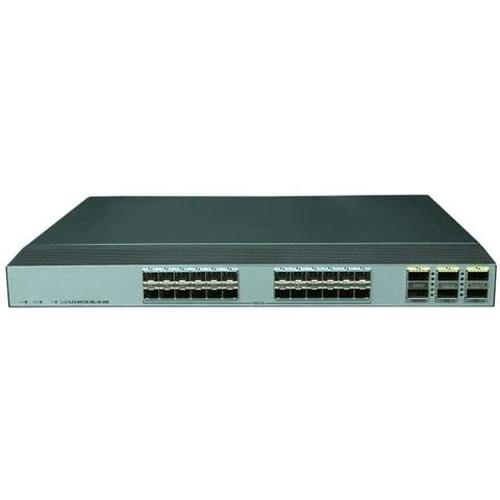

S6720-50L-HI-48S S6720-HI Series 10G Gigabit Switch
Short Description:
| Product Model | |
| S6720-50L-HI-48S | S6720-30L-HI-24S |
| Switching Capacity | |
| 2.56 Tbit/s | 2.56 Tbit/s |
| Forwarding Performance | |
| 420 Mpps | 420 Mpps |
| Fixed Ports | |
| 48 x 10-Gigabit SFP+ and 6 x 40-Gigabit QSFP+or 44 x 10-Gigabit SFP+, 4 x 40-Gigabit QSFP+and 2 x 100-Gigabit QSFP28 | 24 x 10-Gigabit SFP+, 4 x 40-Gigabit QSFP+and 2 x 100-Gigabit QSFP28 |
| Extended Slots | |
| Not supported | Not supported |
| MAC Address Table | 64K MAC address entriesIEEE 802.1d standards complianceMAC address learning and agingStatic, dynamic, and Blackhole MAC address entriesPacket filtering based on source MAC addresses |
| VLAN Features | 4K VLANsIEEE 802.1d standards complianceMAC address learning and agingStatic, dynamic, and Blackhole MAC address entriesPacket filtering based on source MAC addresses |
| IP Routing | Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy |
| Interoperability | VLAN-based Spanning Tree (VBST) — interoperating with PVST, PVST+, and RPVSTLink-type Negotiation Protocol (LNP) — similar to DTPVLAN Central Management Protocol (VCMP) — similar to VTPFor detailed interoperability certifications and test reports, click HE |
