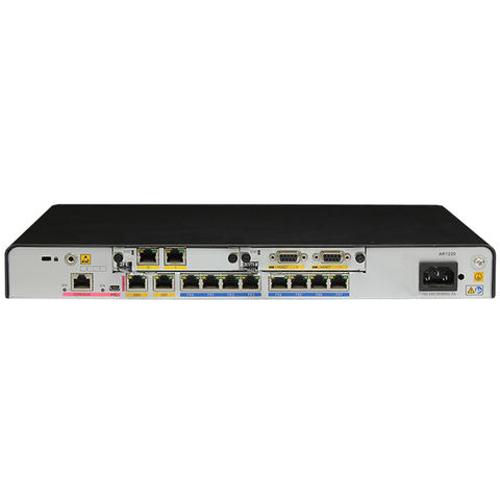

Huawei Network WLAN AR1220EV Enterprise Wi-Fi Routers 3G
Short Description:
| Specifi- cations | |
| AR1220E | |
| AR1220EV | |
| AR1220-EVW | AR1220C |
| WAN Speed with Services | |
| 400 Mbit/s | |
| 400 Mbit/s | |
| 400 Mbit/s | 200 Mbit/s |
| Fixed WAN Ports | |
| 2 x GE Combo | |
| 2 x GE Combo | |
| 2 x GE Combo | 4 x GE+ 1 x GE SFP |
| Fixed LAN Ports | |
| 8 x GE (can be configured as WAN interfaces) | |
| 8 x GE (can be configured as WAN interfaces) | |
| 8 x GE (can be configured as WAN interfaces) | 8 x GE (can be configured as WAN interfaces) |
| Slots | SIC slots: 2 |
| 3G/LTE | FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s |
| Wireless Controller | Wireless Controller is integrated in software |
| Wi-Fi | |
| - | |
| - | |
| 802.11b/g/n | - |
| Memory | |
| 1 GB | |
| 1 GB | |
| 1 GB | 512 MB |
| Maintenance | All interface cards support hot swapping |
| Power Supply | |
| AC: 100V to 240V, 50 Hz/60 Hz | |
| AC: 100V to 240V, 50 Hz /60 Hz | |
| AC: 100V to 240V, 50 Hz/ 60 Hz | AC: 100V to 240V, 50 Hz/ 60 Hz |
| PoE Power: External 100W | PoE Power: External 100W |
| Dimensions (H x W x D) | 44.5 mm x 390 mm x 220 mm (1.8 in. x 15.4 in. x 8.7 in) |
