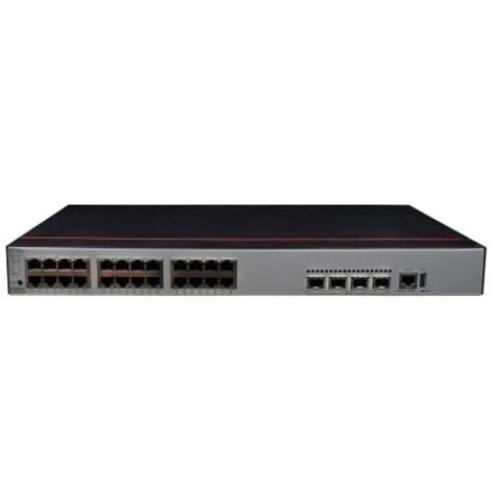

S5735-L24T4S-A CloudEngine S5735-L Series 24 Ports Switch
Short Description:
| Parameters | |
| CloudEngine S5735-L24T4S-ACloudEngine S5735-L24P4S-A | CloudEngine S5735-L24T4X-ACloudEngine S5735-L24T4X-DCloudEngine S5735-L24P4X-A |
| Forwarding Performance | |
| 42 Mpps | 96 Mpps |
| Switching Capacity2 | |
| 56 Gbit/s/336 Gbit/s | 128 Gbit/s/336 Gbit/s |
| Fixed Ports | |
| 24 x 10/100/1000BASE-T ports, 4 x GE SFP ports | 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
| PoE+ | CloudEngine S5735-L12P4S-A: SupportedCloudEngine S5735-L24P4S-A: SupportedCloudEngine S5735-L24P4X-A: SupportedCloudEngine S5735-L48P4X-A: SupportedOther: Unsupported |
| MAC Features | MAC address auto-learning and agingStatic, dynamic, and blackhole MAC address entriesPacket filtering based on source MAC addressesInterface-based MAC address learning limiting |
| VLAN Features | 4094 VLANsGuest VLAN, Voice VLANGVRPMUX VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports1:1 and N:1 VLAN mapping |
| IP Routing | Static route, RIP, RIPng, OSPF, OSPFv3 |
| Super Virtual Fabric (SVF) | Plug-and-play SVF clientsAutomatic software package and patch loading to SVF clientsOne-click and automatic delivery of service configurationsIndependent SVF client operations |
