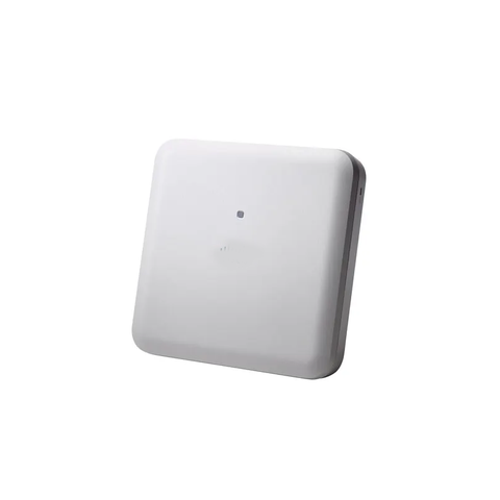

Cis co 3800 Series AIR-AP3802I-H-K9 Wi-Fi Wireless Access Points 802.11ac Wave 2 AP
Short Description:
| Product Code | AIR-AP3802I-H-K9 |
| Antennas | Internal Antennas |
| Interfaces | - 2 Ethernet ports |
| - 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) | |
| - CAT 5e cabling | |
| - Higher-quality 10GBASE-T (CAT 6/6a) cabling | |
| - 100/1000BASE-T autosensing (RJ-45 - AUX port) | |
| - Management console port (RJ-45) | |
| Features | - 4x4 MU-MIMO with three spatial streams |
| - MRC | |
| - 802.11ac beamforming | |
| - 20-, 40-, 80, 160-MHz channels | |
| - PHY data rates up to 5.2 Gbps | |
| - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) | |
| - 802.11 DFS | |
| - CSD support | |
| Regulatory Domain | H (H regulatory domain): |
| - 2.412 to 2.472 GHz; 13 channels | |
| - 5.150 to 5.320 GHz; 8 channels | |
| - 5.745 to 5.825 GHz; 5 channels | |
| System | - 1024 MB DRAM |
| - 256 MB flash | |
| Dimensions (W x L x H) | 8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm) |
| Weight | 4.6 lb (2.09 kg) |
