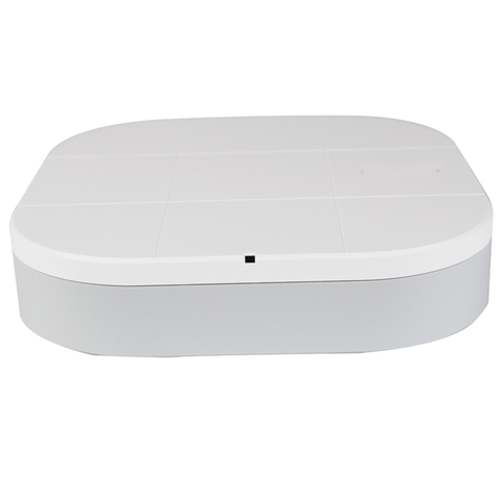

AP1050DN-S AP1000 Series Access Points
Short Description:
| Specifications | AP1050DN-S |
| Dimensions (H x W x D) | 35 mm x 170 mm x 170 mm |
| Power Input | DC: 12V ± 10% |
| PoE power supply: In compliance with IEEE 802.3af/at | |
| Maximum Power Consumption | 8.1W |
| Note: The actual maximum power consumption depends on local laws and regulations | |
| Interface type | 1 x GE |
| Operating Temperature | -10℃ to +50℃ |
| Antenna Type | Built-in dual-band omnidirectional antennas |
| Maximum Number of Users | 256 |
| Maximum Transmit Power | 2.4G: 20 dBm (combined power)5G: 20 dBm (combined power)Note: The actual transmit power depends on local laws and regulations. |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2 |
| Maximum Rate | 633 Mbit/s |
