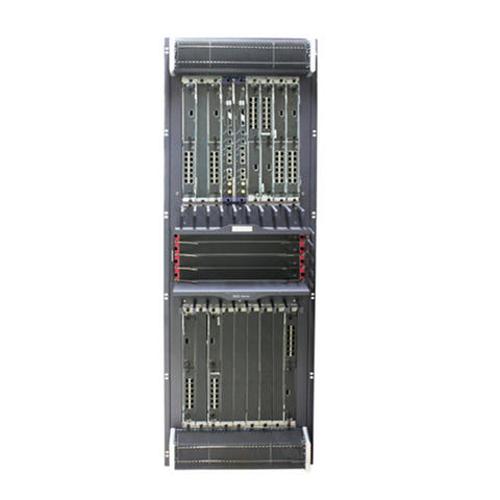

ME60 Series bras Router ME60-X16A
Short Description:
| Attribute | |
| ME60-X16A | |
| ME60-X8A | |
| ME60-X16 | |
| ME60-X8 | ME60-X3 |
| Switching Capacity | |
| 50.32 Tbit/s | |
| 25.16 Tbit/s | |
| 12.58 Tbit/s | |
| 7.08 Tbit/s | 1.08 Tbit/s |
| Forwarding Performance | |
| 11,520 Mpps | |
| 5,760 Mbit/s | |
| 5,760 Mbit/s | |
| 2,880 Mbit/s | 360 Mbit/s |
| Number of Slots | |
| 22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs | |
| 12 slots, including 8 LPUs, 2 SRUs, and 2 SFUs | |
| 22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs | |
| 11 slots, including 8 LPUs, 2 SRUs, and 1 SFU | 5 slots, including 3 LPUs and 2 SRUs |
| Dimensions(H x W x D) | |
| 1,778 mm x 442 mm x 650 mm (40U) | |
| 934 mm x 442 mm x 650 mm (21U) | |
| 1,420 mm x 442 mm x 650 mm (32U) | |
| 620 mm x 442 mm x 650 mm (14U) | 175 mm x 442 mm x 650 mm (DC 4U) 220 mm x 442 mm x 650 mm (AC 5U) |
| Maximum Power Consumption | |
| 7,220W (BSUF-240) 9,040W (BSUF-480) | |
| 4,110W (BSUF-240) 4,770W (BSUF-480) | |
| 4,610W (BSUF-100) 6,210W (BSUF-240) | |
| 2,340W (BSUF-100) 3,220W (BSUF-240) | 920W (BSUF-100) |
| Full Configuration Weight | |
| 356 kg | |
| 190 kg | |
| 279 kg | |
| 136 kg | DC: 42 kg (100G) AC: 52 kg (100G) |
| Interface Types | 100 GE-WAN/LAN 10 GE-WAN/LAN GE/FE |
| BRAS | User access protocols: PPPoE, IPoE, 802.1X, and ND access User authentication protocols: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS User billing protocols: RADIUS, HWTACACS, and COPS User authorization protocols: RADIUS, HWTACACS, COPS, and COA |
| QoS | Provides a well-designed HQoS mechanism Provides advanced scheduling and congestion avoidance technologies, accurate traffic policing and shaping, and complex rule definition and fine-grained flow identification Supports MPLS HQoS and ensures QoS for MPLS VPN, VLL, and PWE3 services Supports DiffServ- and MPLS TE-based DS-TE, eight class types (CTs), and TE-tunnel-based QoS Supports a maximum of 768K flow queues per slot |
| Value-added Services | Supports Destination Address Accounting (DAA), which helps carriers identify services based on destination network segments and perform separate accounting for different services on IP carrier networks Supports Enhanced Dynamic Service Gateway (EDSG), which identifies various user services based on traffic destination addresses and implements independent rate limit, accounting, and management for each service |
