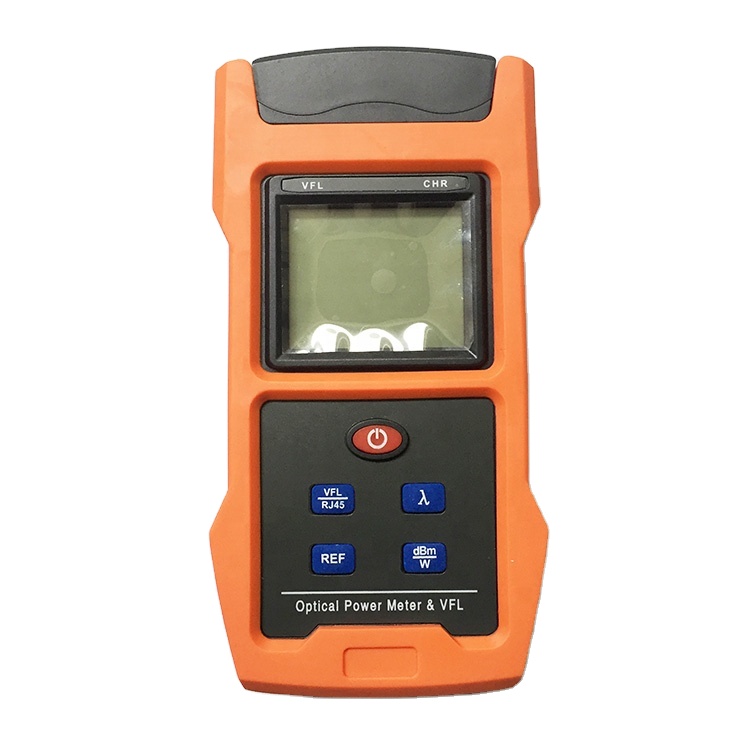

High Linearity Mini Fiber Optic toolkit Laser Optical Power Meter with VFL Visual Fault Locator
Short Description:
| Optical Power Meter | |
| Detector Type | InGaAs |
| Optical Connector | ST/SC/FC & 2.5mm Universal |
| Calibrated Wavelengths | 850,1300,1310,1490,1550,1625 nm |
| Measurement Range | +6 ~ -70 dBm |
| Accuracy | ±0.2 dB |
| Power Measurement Linearity | ±0.1 dB |
| Display Resolution | ±0.01 dB |
| Power Display Units | dBm,mW,uW |
| Visual Fault Locator | |
| Output power | 1mw/10MW/20mw/30mw |
| Range | 12-km@SM |
| Connector | ST/SC/FC & 2.5mm Universal |
| Laser safety rating | Class 2 |
| Wavelength | 650nm±20nm |
| Output modes | Continuous (CW),2 Hz pulsed |
| Reverse battery protection | Yes |
| Others | |
| Power Supply | 18650mAh Li-con battery |
| Auto Off | 10 minutes |
| Working time | >200 hours(only OPM Work) ≥50 hours(10mWVFL & OPM Work meanwhile) |
| Working Temperature | -10~+45 |
| Weight | 250g |
| Dimensions | 160x75x10mm |
