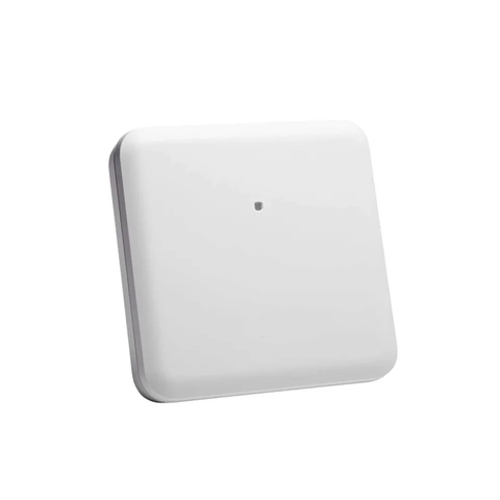

AIR-AP1852I-H-K9 802.11ac Wave 2 Aironet 1852i wireless Access Point
Short Description:
| Part Number | AIR-AP1852I-H-K9 |
| Description | 802.11ac Wave 2 Access Point, 4x4:4, Internal-Ant, H Regulatory Domain |
| Features | - 4x4 MIMO with four spatial streams, single-user MIMO- 4x4 MIMO with three spatial streams, multiuser MIMO- MRC- 802.11ac beamforming (transmit beamforming)- 20-, 40-, and 80-MHz channels- PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz)- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)- 802.11 DFS- CSD support |
| Regulatory Domain | H (H regulatory domain):- 2.412 to 2.472 GHz; 3 channels- 5.150 to 5.350 GHz; 8 channels- 5.745 to 5.825 GHz; 5 channels |
| Antenna | Internal Antenna |
| Interfaces | - 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)- 1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation)- Management console port (RJ-45)- USB 2.0 (enabled via future software) |
| Dimensions (W x L x H) | 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm) |
| Weight | 3.12 lb (1.41 kg) |
