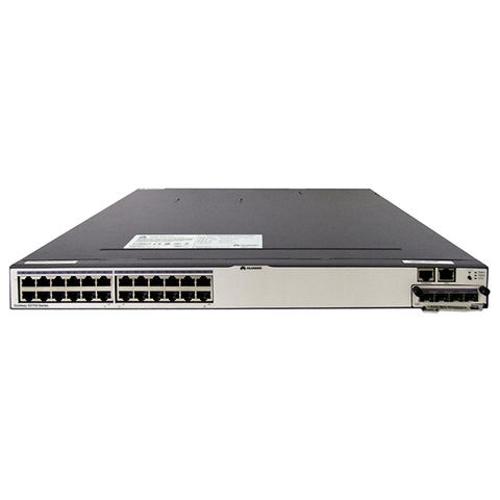

Gigabit Enterprise Switch S5700 Series S5700-28C-EI layer 3 network switch
Short Description:
| 1000M port | |
| LI | S5700(S)-28P-LI**/S5700-28P-PWR-LI: 24*10/100/1000Base-T, 4*100/1000Base-X SFPS5700(S)-52P-LI/S5700-52P-PWR-LI: 48*10/100/1000Base-T, 4*100/1000Base-X SFPS5710-28C-LI/S5710-28C-PWR-LI: 20*10/100/1000Base-T, 4*GE ComboS5710-52C-LI/S5710-52C-PWR-LI: 48*10/100/1000Base-T |
| SI | S5700-24TP-SI/S5700-24TP-PWR-SI/S5700-28C-SI/S5700-28C-PWR-SI: 20*10/100/1000Base-T, 4*GE ComboS5700-48TP-SI/S5700-48TP-PWR-SI: 44*10/100/1000Base-T, 4*GE ComboS5700-52C-SI/S5700-52C-PWR-SI: 48*10/100/1000Base-T |
| EI | S5700-28C-EI/S5700-28C-PWR-EI: 24*10/100/1000Base-TS5700-52C-EI/S5700-52C-PWR-EI: 48*10/100/1000Base-TS5700-28C-EI-24S: 20*100/1000Base-X, 4*GE Combo S5710-28C-EI: 20*10/100/1000Base-T, 4*GE Combo, 4*10GE SFP +S5710-52C-EI: 48*10/100/1000Base-T, 4*10GE SFP + |
| HI | S5700-28C-HI: 24*10/100/1000Base-TS5700-28C-HI-24S: 24*100/1000Base-X |
| Extended slot | The S5700TP provides an extended slot for a stack cardS5700C Provide two extended slots, one for an uplink subcard and the other for a stack card.S5710C Provide two extended slots for uplink subcards.The S5700-HI provides an extended slot for an uplink subcard |
| MAC address table | |
| 16K MAC address entries (S5700S-LI: 8K MAC ) | 32K MAC address entries |
| VLAN | 4K VLANsGuest VLAN and voice VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports1:1 and N:1 VLAN MappingSuperVLAN(except S5700(S)-LI) |
| Reliability | RRPP ring topology and RRPP multi-instanceSmart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchoverSEPSTP, RSTP, and MSTPBPDU protection, root protection, and loop protectionE-Trunk(except S5700(S)-LI) |
| NA | BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM |
| MPLS features | |
| NA | MPLS VPLSMPLS VLL |
| IP routing | Static routing, ECMP(except S5700(S)-LI) |
| NA | RIPv1, RIPv2 and RIPng |
| NA | OSPF, OSPF v3, IS-IS, IS-ISv6, BGP and BGP 4+ |
| IPv6 features | Neighbor Discovery (ND)Path MTU (PMTU)IPv6 ping, IPv6 tracert, and IPv6 TelnetACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol typeMLD v1/v2 snooping6to4 tunnel, ISATAP tunnel, and manually configured tunnel(except S5700(S)-LI) |
| multicast | IGMP v1/v2/v3 snooping and IGMP fast leaveMulticast forwarding in a VLAN and multicast replication between VLANsMulticast load balancing among member ports of a trunkControllable multicastPort-based multicast traffic statistics |
| NA | IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM |
| QoS/ACL | Rate limiting on packets sent and received by an interfacePacket redirectionPort-based traffic policing and two-rate three-color CAREight queues on each portWRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithmsWRED (supported by the S5700(10)-EI and S5700-HI)Re-marking of the 802.1p priority and DSCP priorityPacket filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN IDRate limiting in each queue and traffic shaping on ports |
| OAM | |
| Supports | Hardware implementationEFM OAMCFM OAMY.1731 performance test supports hardware-level delay and jitter detection |
| Operating environment | Operating temperature: 0°C–50°C(long term); -5°C–55°C(short term)Relative humidity: 10%–90% (non-condensing) |
| Input voltage | AC:Rated voltage range: 100 V to 240 V AC, 50/60 HzMaximum voltage range: 90 V to 264 V AC, 50/60 HzDC:Rated voltage range: –48 V to –60 V, DCMaximum voltage range: –36 V to –72 V DCNote: PoE-support switches do not use DC power supplies. |
| Dimensions (W x D x H) | S5700-28P-LI/S5700-24TP-SI/S5700-28C-HI/S5700-28C-HI-24S: 442 mm x 220 mm x 43.6 mmS5700-28P-PWR-LI/S5700-52P-LI/S5700-52P-PWR-LI: 442 mm x 310 mm x 43.6 mm Others: 442 mm x 420 mm x 43.6 mm |
