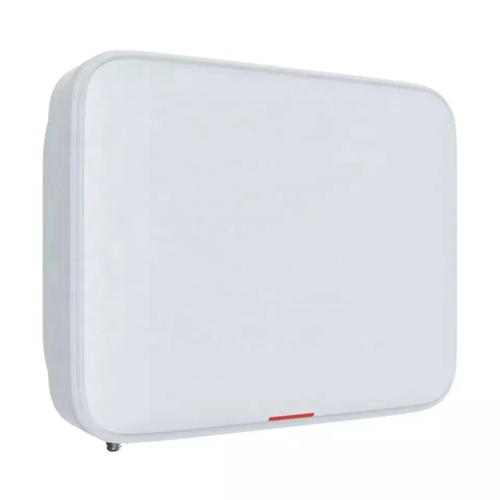

AirEngine 6760R-51E outdoor Wi-Fi 6 (802.11ax) Access Point antenna for AirEngine 6760r-51e
Short Description:
| Parameters | AirEngine 6760R-51 & AirEngine 6760R-51E |
| Dimensions (H x W x D) | 85 mm x 270 mm x 220 mm |
| Power Input | PoE power supply: in compliance with IEEE 802.3bt |
| Maximum Number of Users | ≤ 1024 |
| Note: The actual number of users varies according to the environment | |
| Port | 1 x 5 GE electrical, 1 x GE electrical, and 1 x 10 GE SFP+ |
| Built-in Bluetooth | BLE 5.0 |
| Operating Temperature | –40°C to 65°C |
| Antenna Type | AirEngine 6760R-51: Built-in Antennas |
| AirEngine 6760R-51E: External antennas | |
| MIMO: Spatial Streams | 2.4 GHz: 4x4:4; 5 GHz: 4x4:4 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Rate | 5.95 Gbit/s |
