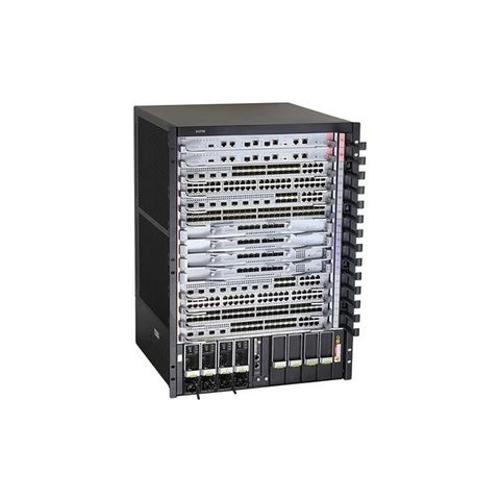

S12710 Layer 3 Ethernet Network Core Switch
Short Description:
| Item | |
| S12704 | |
| S12708 | |
| S12710 | S12712 |
| Switching capacity | |
| 4.88Tbps/ 16.08Tbps | |
| 12.32Tbps/ 32.16Tbps | |
| 13.12Tbps/ 38.56Tbps | 17.44Tbps/ 44.96Tbps |
| Packet forwarding rate | |
| 3120Mpps/ 4,560Mpps | |
| 6240Mpps/ 9,120Mpps | |
| 7440Mpps/ 11,040Mpps | 9120Mpps/ 12,960Mpps |
| MPU slots | |
| 2 | |
| 2 | |
| 2 | 2 |
| SFU slots | |
| 2 | |
| 4 | |
| 4 | 4 |
| Service card slots | |
| 4 | |
| 8 | |
| 10 | 12 |
| Redundancy design | MPUs, SFUs, power supplies, and fan modules |
| CSS2 | 1+N backup of MPUs in a cluster |
| Wireless network management | Native AC |
| User management | Unified user management |
| iPCA quality awareness | Marking real service packets to obtain real-time count of dropped packets and packet loss ratio |
| SVF 2.0 virtualization | Up to 4K clients (access switches and APs) virtualized into a single device |
| VLAN | Access, trunk, and hybrid interface types, auto-negotiation of LNP links |
| ARP | 256K ARP entries |
| MAC address | 1M MAC address entries |
| Ring network protection | Spanning Tree Protocol (STP) (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) |
| IP routing | 3M IPv4 routing entries |
| Multicast | 128,000 multicast routing entries |
| MPLS | Basic MPLS functions |
| Reliability | Link Aggregation Control Protocol (LACP) and E-Trunk |
| QoS | 256K ACLs |
| Network synchronization | Ethernet synchronization |
| Configuration and maintenance | Terminal access services such as console port login, Telnet, and SSH |
| Security and management | MAC address, Portal, 802.1x, and Dynamic Host Configuration Protocol (DHCP) snooping triggered authentication |
| Security protection* | Firewall |
| Interoperability | Interoperable with VBST (compatible with PVST/PVST+/RPVST) |
| Energy saving | Energy Efficient Ethernet (802.3az) |
| Dimensions (H x W x D in mm) | |
| 441.7 x 442 x 489, 10U | |
| 663.95 x 442 x 489, 15U | |
| 663.95 x 442 x 489, 15U | 841.75*442*489, 19U |
| Weight (empty chassis) | |
| 29kg | |
| 42kg | |
| 37kg | 63kg |
| Operating voltage | DC:–40V~–72V AC:90V~290V |
| Maximum power consumption of the entire equipment | |
| ≤2200W | |
| ≤4400W | |
| ≤4400W | ≤6600W |
