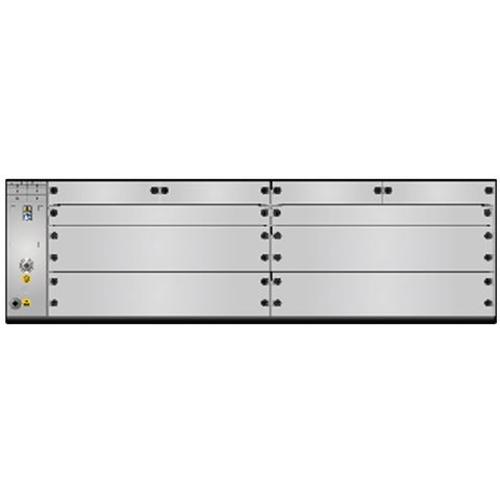

AR3260 4G WiFi VPN Router
Short Description:
| Item | AR3260 |
| WAN Speed with Services | 1 Gbit/s (SRU40), 2 Gbit/s (SRU80), 4.5 Gbit/s (SRU200), 5.5 Gbit/s (SRU400) |
| Firewall Performance (large packets) | 5.5 Gbit/s (SRU40), 9.5 Gbit/s (SRU80), 15 Gbit/s (SRU200), 20 Gbit/s (SRU400) |
| Device Switching Capacity | 160 Gbit/s |
| Slot Switching Bandwidth | SIC slots: 2 Gbit/s WSIC slots: 5 Gbit/s XSIC & EXSIC slots: 20 Gbit/s |
| Fixed WAN Ports | 3 x GE (2 x Combo)/4 x GE Combo + 2 x 10 GE |
| SIC Slots | 4 |
| WSIC Slots | 2/4 |
| XSIC Slots (default/max**) | 4/6 |
| EXSIC Slots (share with XSIC) | 1 |
| DSP Slots | 0/3 |
| USB 2.0 Ports | 2 |
| Mini-USB Ports | 1 |
| Serial Auxiliary/ Console Ports | 1 |
| Memory | 2 GB/8 GB |
| Flash(default/max**) | 2 GB/4 GB |
| Maximum Power | 350W (single power module)/700W (dual power module) |
| AC Power | 100V to 240V |
| Frequency | 50/60 Hz |
| DC Power | -48V to -60V |
| Dimensions (H x W x D) | 5.1 in. x 17.4 in. x 18.5 in. (130.5 mm x 442 mm x 470 mm) |
| Weight | 24.3 lb. (11 Kg) without power module and interface card |
| Ambient Temperature | 32oF to 113oF (0oC to 45°C) |
| Ambient Humidity | 5% to 95% (non-condensing) |
| Basic Features | DHCP server/client, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, and sub-interface management |
| Voice | RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC |
| 3G | CDMA 2000 EV-DO Rev. A, WCDMA, and individual 3G uplink/backup link |
| LTE | FDD LTE: Uplink: 50 Mbit/s Downlink: 100 Mbit/s |
| WLAN (AC) | AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management 802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management) |
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP |
| IPv4 Unicast Routing | Routing policy, static route, RIP, OSPF, IS-IS, and BGP |
| IPv6 Unicast Routing | Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+ |
| Multicast | IGMP v1/v2/v3, IGMP-Snooping Version 1/2/3, PIM SM, PIM DM, and MSDP |
| MPLS | LDP, MPLS L3 VPN, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, and TE FRR |
| VPN | IPSec VPN, GRE VPN, DSVPN, L2TP VPN, and Smart VPN |
| QoS | DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, traffic policy), hierarchical QoS, FR QoS, Smart Application Control (SAC), and Hard QoS |
| Security | ACL, firewall, 802.1x authentication, MAC address authentication, Web authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, IP source guard, DHCP snooping, CPCAR, blacklist, and IP source tracing |
| Management and Maintenance | Upgrade management, device management, web-based GUI, GTL, SNMP Versions 1/2c/3, NTP, CWMP, auto-config, deployment using USB disk, NetConf, and CLI |
