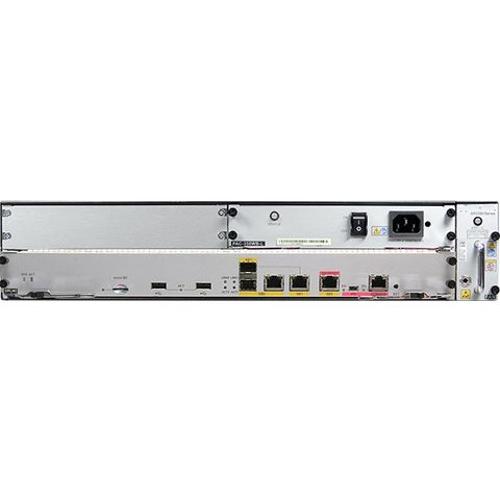

AR2240C-S Network 4G Enterprise Router
Short Description:
| Processor | Six-core, 1.2 GHz |
| Memory | 2 GB |
| Flash | 32 MB |
| Micro SD card (default sd1) | 2 GB |
| Hard disk | Not supported |
| Dimensions (W x D x H) | With no mounting bracket installed: 442.0 mm x 470.0 mm x 88.1 mm (17.4 in. x 18.5 in. x 3.47 in.), 2 U height With mounting brackets installed: 482.6 mm x 470.0 mm x 88.1 mm (19.0 in. x 18.5 in. x 3.47 in.), 2 U height |
| Weight | 8.85 kg |
| AC model (using 350 W AC power modules) | Supports two hot swappable 350 W AC power modules. |
| Rated input voltage range (AC) | 100 V to 240 V, 50 Hz/60 Hz |
| Maximum input voltage range (AC) | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current | 5 A |
| RPS power supply | Not supported |
| PoE power supply | Not supported |
| AC PoE model (using 850 W PoE AC power modules) | Supports two hot swappable 850 W PoE AC power modules. |
| Rated input voltage range (AC) | 100 V to 240 V, 50 Hz/60 Hz |
| Maximum input voltage range (AC) | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current | 10 A |
| Maximum output power | 850 W |
| RPS power supply | Not supported |
| PoE power supply | Supported |
