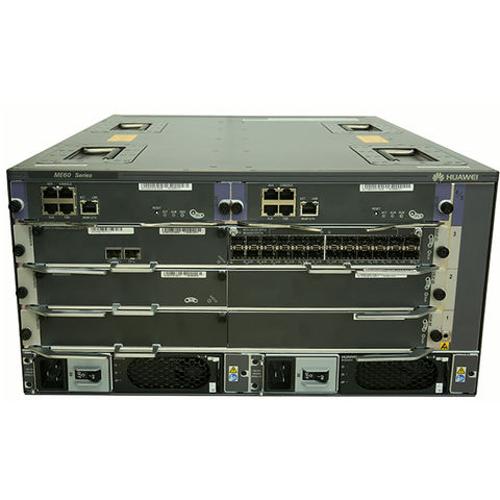

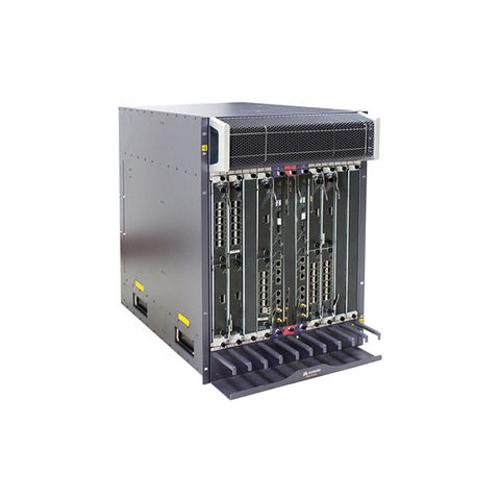

Huawei me60 multi-service control gateway (mscg) bras router me60-x8
Short Description:
| Specifications | |
| ME60-X16 | ME60-X8 |
| Switching Capacity | |
| 25.2 Tbit/s | 12.58 Tbit/s |
| Slots | |
| 22 slots, including 2 MPUs (1:1 backup), 4 SFUs (3+1 backup), and 16 LPUs | 11 slots, including 2 SRUs (1:1 backup), 1 SFUs (2+1 backup), and 8 LPUs |
| Dimensions (W x D x H) | |
| 442 mm x 650 mm x 1,420 mm (32U) | 442 mm x 650 mm x 620 mm (14U) |
| Maximum Power Consumption | |
| 4,610W (120G) 7,970W (240G) | 2,340W (120G) 4,100W (240G) |
| Full Configuration Weight | |
| 246 kg (120G) 279 kg (240G) | 119 kg (120G) 136 kg (240G) |
| BRAS | User access protocol: PPPoE, PPPoEoA, IPoE, IPoEoA, and PPPoA 802.1X User authentication protocol: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS User accounting protocol: RADIUS, HWTACACS, and COPS User authorization protocol: RADIUS, HWTACACS, and COPS Policy protocol: COPS and COA |
| QoS | Weighted Random Early Detection (WRED), DS-TE capability with a maximum of eight CTs, five-level H-QoS scheduling, VLL/PWE3 QoS, and MPLS H-QoS. The last mile QoS. Multicast replication of IPoE access users |
| DAA | ME60s support Destination Address Accounting (DAA), providing refined subscriber management with differentiated service and accounting in IP networks. |
