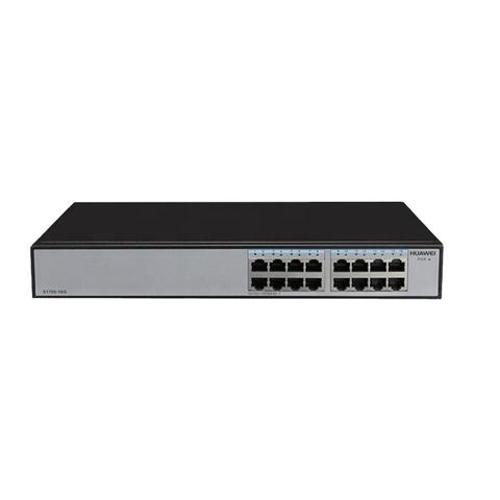

Huawei S1700-16G 16 Ports Network Switch
Short Description:
| Product Model | |
| S1700-24-AC | |
| S1700-52R-2T2P-AC | |
| S1700-16GS1724G-ACS1700-24GR | S1700-28GR-4XS1700-52GR-4X |
| Switching Capacity | |
| 4.8 Gbit/s | |
| 17.6 Gbit/s | |
| S1700-16G: 32 Gbit/sS1724G-AC: 48 Gbit/sS1700-24GR: 48 Gbit/s | S1700-28GR-4X: 168 Gbit/sS1700-52GR-4X: 336 Gbit/s |
| Forwarding Performance | |
| 3.6 Mpps | |
| 13.2 Mpps | |
| S1700-16G: 24 MppsS1724G-AC: 36 MppsS1700-24GR: 36 Mpps | S1700-28GR-4X: 96 MppsS1700-52GR-4X: 132 Mpps |
| Port Type | |
| 100M Uplink and Downlink | |
| 100M access, 1,000M Uplink | |
| GE Uplink and Downlink | 1,000M access, 10 GE Uplink |
| Fixed Ports | |
| 24 x 10/100 Base-T portsNote: These ports can be used for both upstream and downstream transmission. | |
| Downlink: 48 x 10/100 Base-T portsUplink: 2 x 10/100/1,000 Base-T ports and 2 x 1,000 Base-X optical ports | |
| S1700-16G: 16 x 10/100/1,000 Base-T portsS1724G-AC: 24 x 10/100/1,000 Base-T portsS1700-24GR: 24 x 10/100/1,000 Base-T portsNote: These ports can be used for both upstream and downstream transmission. | S1700-28GR-4XDownlink: 24 x 10/100/1,000 Base-T portsUplink: 4 x 10G Base-X optical portsS1700-52GR-4XDownlink: 48 x 10/100/1,000 Base-T portsUplink: 4 x 10G Base-X optical ports |
