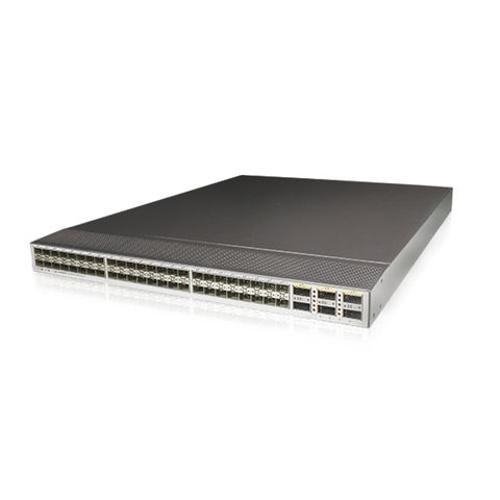

Huawei CloudEngine Data Center Switch CE6881-48S6CQ
Short Description:
| 1 | |
| Ground screw | |
| 2 | USB port |
| 3 | |
| Equipment serial number (ESN) NOTE: You can scan the code to view the ESN and MAC address of the switch. | |
| 4 | Console port |
| 5 | |
| ETH management port (RJ45) | |
| 6 | Fan slot 1 |
| 7 | |
| Fan slot 2 | |
| 8 | Fan slot 3 |
| 9 | |
| Fan slot 4 | |
| 10 | Power supply slot 1 |
| 11 | |
| Power supply slot 2 | |
| 12 | Forty-eight 10GE SFP+ Ethernet optical ports |
| 13 | |
| Six 40GE/100GE QSFP28 Ethernet optical ports | |
| 14 | Three port-side mounting holes for mounting brackets |
| 15 | |
| Two middle mounting holes for mounting brackets | |
| 16 | Equipotential bonding Ground screws for a ground cable with a two-hole OT terminal |
| 17 | |
| Four power-supply-side mounting holes for mounting brackets | |
| - | - |
