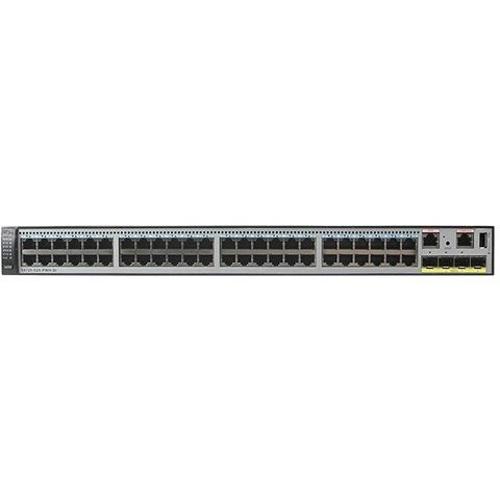

Layer 3 Gigabit Ethernet Switch S6720-54C-EI-48S-AC
Short Description:
| Specifications | |
| S6720-30C-EI-24S-AC | S6720-54C-EI-48S-AC |
| S6720-30C-EI-24S-DC | S6720-54C-EI-48S-DC |
| Switching Capacity | |
| 2.56 Tbit/s | 2.56 Tbit/s |
| Forwarding Performance | |
| 720 Mpps | 1,080 Mpps |
| Fixed Ports | |
| 24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports | 48 x 10 GE SFP+, 2 x 40 GE QSFP+ ports |
| Extended Slot | |
| One extended slot for 4 x 40 GE QSFP+ interface card | One extended slot for 4 x 40 GE QSFP+ interface card |
| MAC Address Table | 288k MAC address entries |
| IPv4 Routing | Static routing, RIPv1, RIPv2, ECMP, and URPF |
| Multicast | Static Layer 2 multicast MAC address |
