Dimensions (W x D x H, excluding the rack-mounting ears)
|
|
S9312:
With cable management frames: 442 mm x 585 mm x 663.95 mm (15 U high)
Without cable management frames: 442 mm x 489 mm x 663.95 mm (15 U high)
S9312E:
With cable management frames: 442 mm x 585 mm x 663.95 mm (15 U high)
Without cable management frames: 442 mm x 489 mm x 663.95 mm (15 U high)
|
|

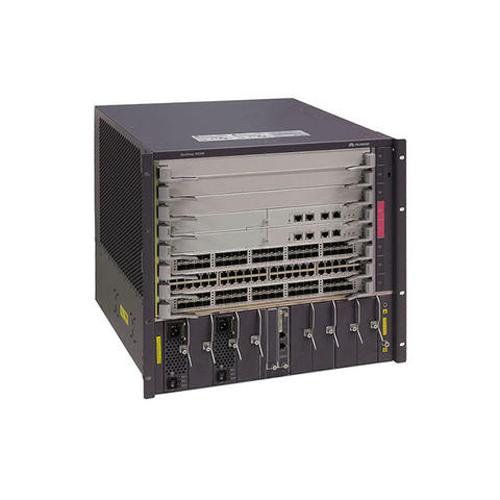

S9306:
with cable management frames: 442 mm x 585 mm x 441.7 mm (10 U high)
Without cable management frames: 442 mm x 489 mm x 441.7 mm (10 U high)
S9306E:
With cable management frames: 442 mm x 585 mm x 441.7 mm (10 U high)
Without cable management frames: 442 mm x 489 mm x 441.7 mm (10 U high)
|
S9303:
With cable management frames: 442 mm x 585 mm x 175 mm (4 U high)
Without cable management frames: 442 mm x 489 mm x 175 mm (4 U high)
S9303E:
With cable management frames: 442 mm x 585 mm x 175 mm (4 U high)
Without cable management frames: 442 mm x 489 mm x 175 mm (4 U high)
|
|
Cabinet
|
|
N66E or N68E
|
|
N66E or N68E
|
N66E or N68E
|
|
Maximum power (full configuration)
NOTE:
The heat dissipation value of a device equals the current power consumption of the device.
|
|
S9312:
3000 W
S9312E:
4400 W
|
|
S9306:
1600 W
S9306E:
2200 W
|
S9303:
800 W
S9303E:
1100 W
|
|
Weight (empty/fully loaded)
|
|
S9312:
25 kg/70 kg
S9312E:
37 kg/70 kg
|
|
S9306:
15 kg/42 kg
S9306E:
29 kg/45 kg
|
S9303:
10 kg/22 kg
S9303E:
11 kg/25 kg
|
|
Noise at normal temperature
|
|
≤ 72 dB
|
|
≤ 72 dB
|
≤ 72 dB
|
|
Power specifications
|
DC input voltage
Rated voltage: -48 V DC/-60 V DC
Voltage range: -38.4 V DC to -72 V DC
AC input voltage
Rated voltage: 110 V AC/220 V AC, 50/60 Hz
Voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.)
|
|
PoE
NOTE:
The S9300E Series Switches do not support PoE.
|
|
Power input mode
|
|
Built-in. Only the AC power supply is supported.
|
|
Built-in. Only the AC power supply is supported.
|
Built-in. Only the AC power supply is supported.
|
|
Redundancy mode of power supplies
|
|
The S9312 supports power supplies in 3+1, 2+2, or 4+0 mode.
|
|
The S9306 supports power supplies in 3+1, 2+2, or 4+0 mode.
|
The S9303 does not support backup of AC power modules.
|
|
Output power consumption
|
|
8800 W
|
|
8800 W
|
2200 W
|
|
Environment parameters
|
Operating temperature and altitude:
-60 m to +1800 m: 0°C to 45°C
1800 m to 4000 m: Temperature decreases by 1°C every time the altitude increases 200 m.
4000 m: 0°C to 35°C
Operating relative humidity: 5% RH to 95% RH (noncondensing)
Storage temperature: -40°C to +70°C
Storage altitude: < 5000 m
Storage relative humidity: 5% RH to 95% RH (noncondensing)
|
