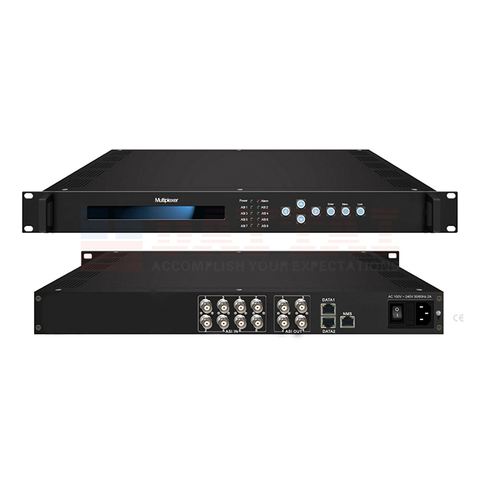

ISO13818 NE300 458 Standard 8 Channel ASI IP Transport Stream MPEG2 TS CATV Multiplexing
Short Description:
| Input | |
| 8 ASI input+512 IP input DATA 1 and DATA 2 over UDP protocol | |
| Re-multiplex | |
| PID re-mapping | |
| PCR accurate adjusting | |
| PSI/SI (PAT, PMT) tables auto generation and edition | |
| Output port | |
| ASI | 2 groups separate outputs (each group has 2 channels) |
| IP | MPTS over UDP, RTP/RTSP output (RJ45), 1000Mbps Ethernet, DATA 1 and DATA 2 |
| PID | |
| Output range | 0x0000—0x1FFF |
| PID transparent | Any PID transparent and mapping achievable |
| Amount of output PID | 180 |
| NMS port | |
| Ethernet port | 10/100M/1000M self adaption |
| General | |
| Dimensions | 482mm×300mm×44mm (WxLxH) |
| Weight | 3.5kg |
| Temperature | 0~45℃(operation), -20~80℃(storage) |
| Power supply | AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz |
