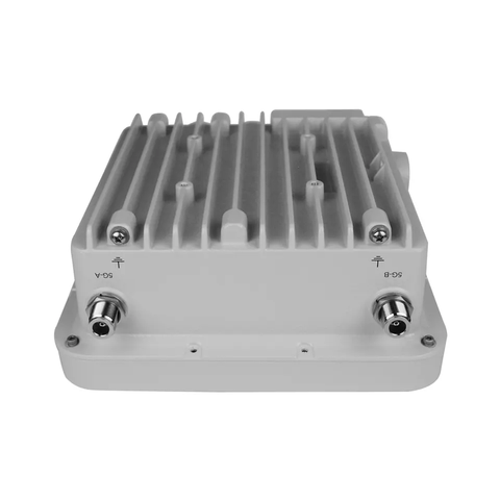

HW AP8150DN 802.11ac Wave 2 outdoor Access Points
Short Description:
| Specifications | AP8050DN & AP8150DN |
| Dimensions (H x W x D) | 100 mm x 220 mm x 220 mm |
| Power Input | PoE power supply: In compliance with IEEE 802.3 at |
| Maximum Power Consumption | AP8050DN: 18W |
| AP8150DN: 18W | |
| Note: The actual maximum power consumption depends on local laws and regulations | |
| Operating Temperature | –40°C to +65°C |
| Antenna Type | AP8050DN: Built-in directional antennas |
| AP8150DN: External antennas | |
| Maximum Number of Concurrent Users | ≤ 512 |
| Maximum Transmit Power | AP8050DN: |
| - 2.4G: 27 dBm (combined power) | |
| - 5G: 26 dBm (combined power) | |
| AP8150DN: | |
| 2.4G: 27 dBm (combined power) | |
| 5G: 24 dBm (combined power) | |
| Note: The actual transmit power depends on local laws and regulations | |
| MIMO: Spatial Streams | 2 x 2:2 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2 |
| Maximum Rate | AP8050DN: 1.267 Gbit/s |
| AP8150DN: 1.73 Gbit/s |
