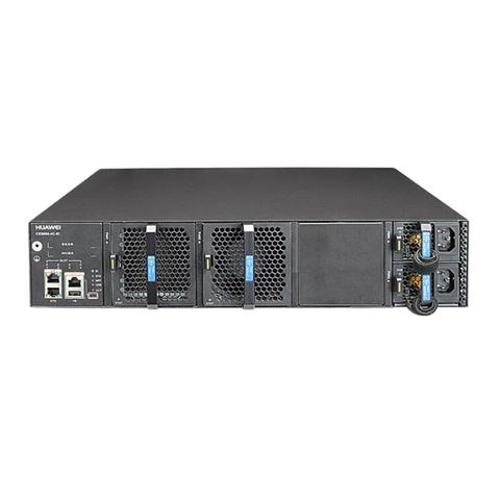

Huawei Original CE8800 Series CE8860-4C-EI 128x10GE Outdoor Ethernet Switch
Short Description:
| Item | CE8860-4C-EI |
| Ports | 4 slots, different cards can be flexibly used in combinations to achieve a maximum of: 32 x 100 GE QSFP28 or 64 x 40 GE QSFP+ or 128 x 25 GE SFP28 or 128 x 10 GE SFP+ ports |
| Forwarding Performance | 2976 Mpps |
| Airflow Design | Front-to-back or back-to-front |
| Device Virtualization | iStack Super Virtual Fabric (SVF) |
| Network Virtualization | M-LAG TRILL VXLAN (CE6800HI) |
| VM Awareness | Agile Controller |
| Network Convergence | FCoE DCBX, PFC and ETS |
| SDN | Open Programmability System (OPS) |
| Traffic Analysis | NetStream sFlow |
| VLAN | Adding access, trunk and hybrid interfaces to VLANs Default VLAN QinQ MUX VLAN |
| MAC Address Table | Dynamic learning and aging of MAC addresses Static, dynamic, and blackhole MAC address entriesPacket filtering based on source MAC addressesMAC address limiting based on ports and VLANs |
| IP Routing | IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+ |
| IPV6 | IPv6 Neighbor Discovery (ND) Path MTU Discovery (PMTU)TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6 |
| Multicast | IGMP, PIM-SM, MSDP, and MBGP IGMP SnoopingIGMP ProxyFast leave of multicast member interfacesMulticast traffic suppressionMulticast VLAN |
| MPLS | MPLS (CE6800HI) |
| Reliability | LACP STP, RSTP, and MSTPBPDU protection, root protection, and loop protectionSmart Link and multi-instanceDLDPERPS(G.8032)VRRP, VRRP load balancing, and BFD for VRRPBFD for BGP/IS-IS/OSPF/Static route |
| QoS | Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority Actions of ACL, CAR, re-marking, and schedulingQueue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR Congestion avoidance mechanisms, including WRED and tail dropTraffic shaping |
| Configuration and Maintenance | Console, Telnet, and SSH terminals Network management protocols, such as SNMPv1/v2c/v3File upload and download through FTP and TFTPBootROM upgrade and remote upgrade802.3az Energy Efficient Ethernet (EEE)Hot patchesUser operation logsZTP |
| Security and Management | 802.1x authentication Command line authority control based on user levels, preventing unauthorized users from using commandsDoS, ARP, and ICMP attack defensesPort isolation, port security, and sticky MACBinding of the IP address, MAC address, interface number, and VLAN IDAuthentication methods, including AAA, RADIUS, and HWTACACSRemote Network Monitoring (RMON) |
| Dimensions (W x D x H) | 442 mm x 600 mm x 88.1 mm |
| Weight (fully loaded) | 27 kg |
| Environmental Parameters | Operating temperature: 0°C to 40°C (0m to 1,800m)Storage temperature: -40°C to +70°CRelative humidity: 5% RH to 95% RH, non-condensing |
| Operating Voltage | AC: 220V DC: 240V & 380V VDC |
| Maximum Power Consumption | 800W |
