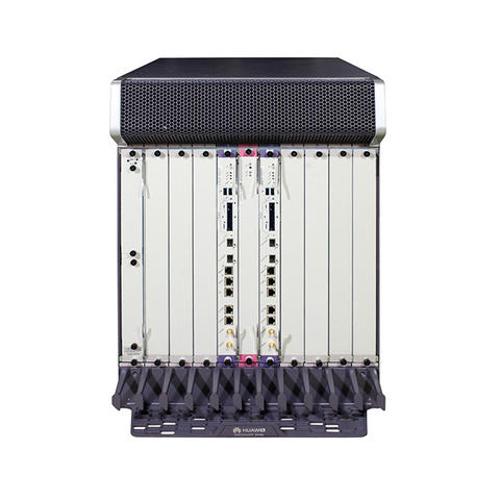

Huawei NE40 Series Router NE40E-X8
Short Description:
| Attribute | |
| NE40E-X16 | |
| NE40E-X8 | NE40E-X3 |
| Switching Capacity | |
| 12.58 Tbit/s | |
| 7.08 Tbit/s | 1.08 Tbit/s |
| Forwarding Performance | |
| 5,760 Mpps | |
| 2,880 Mpps | 540 Mpps |
| MPU Slots | |
| 2 | |
| 2 | |
| 2 | |
| SFU Slots | |
| 4 | |
| 1 | 0 |
| LPU Slots | |
| 16 | |
| 8 | 3 |
| Service Card Slots | |
| Maximum 48 | |
| Maximum 32 | Maximum 12 |
| Dimensions (H x W x D) | |
| 1,420 mm x 442 mm × 650 mm (32U) | |
| 620 mm × 442 mm × 650 mm (14U) | 175 mm × 442 mm × 650 mm (DC 4U)220 mm × 442 mm × 650 mm (AC 5U) |
| Maximum Power Consumption | |
| 4,610W (120G)7,970W (240G) | |
| 2,340W (120G)4,100W (240G) | 1,070W (AC)920W (DC) |
| Weight in Full Configuration | |
| 246 kg (120G)279 kg (240G) | |
| 119 kg (120G)136 kg (240G) | 42 kg (DC)52 kg (AC) |
