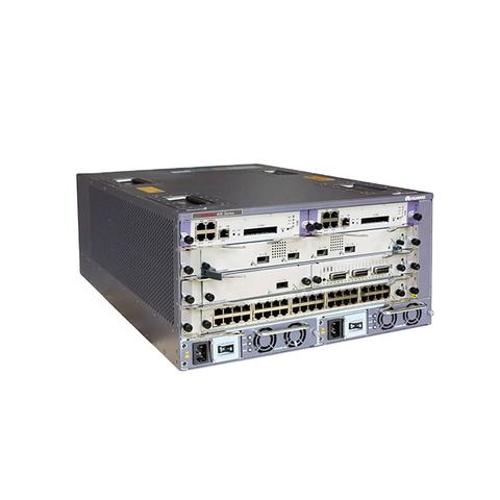

Huawei NE40E-X3 NE Series Universal Service ADSL2 Router GSM Gateway Router
Short Description:
| Dimensions (H x W x D) | DC: (4 U) 175 mm x 442 mm x 650 mm (6.89 in. x 17.40 in. x 25.59 in.) AC: (5 U) 220 mm x 442 mm x 650 mm (8.66 in. x 17.40 in. x 25.59 in.) |
| Weight (empty) | DC: 12 kg (26.46 lb) AC: 20 kg (44.1 lb) |
| Weight (full configuration) | DC: 42 kg (92.61 lb) AC: 52 kg (114.66 lb) |
| Cabinet installation standard | Can be installed in a standard 19" 800 mm-deep cabinet. A Huawei 2.2 m-high N68E cabinet is used by default. |
| Typical power consumption | DC: 800 W (fully configured with LPUF-51s) AC: 950 W (fully configured with LPUF-51s) DC: 920 W (fully configured with LPUF-120s) AC: 1070 W (fully configured with LPUF-120s) |
| Typical heat dissipation | DC: 2595.5 BTU/hour (fully configured with LPUF-51s) AC: 3082.2 BTU/hour (fully configured with LPUF-51s) DC: 2984.9 BTU/hour (fully configured with LPUF-120s) AC: 3471.5 BTU/hour (fully configured with LPUF-120s) |
| DC input voltage | input voltage range: –38.4 V to –72 V input rated voltage: –48 V/ –60 V |
| AC input voltage | input voltage range: 180 V to 264 V input rated voltage: 200 V to 240 V |
| MTBF | 27.44 years |
| MTTR | 0.5 hours |
| Availability | 0.99999792 |
| Slot quantity | 5 |
| Redundant MPUs | 1:1 |
| Redundant Switch fabrics | N/A |
