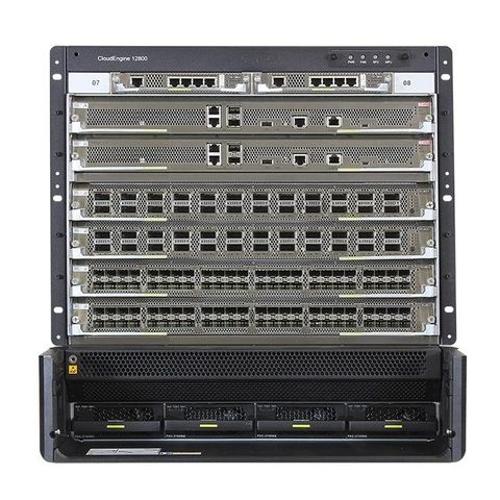

CloudEngine 12808 Data Center Switch CE12808
Short Description:
| Item | |
| CE12804S | |
| CE12808S | |
| CE12804 | |
| CE12808 | |
| CE12812 | CE12816 |
| Switching Capacity | |
| 16/40 Tbit/s | |
| 32/80 Tbit/s | |
| 16/40 Tbit/s | |
| 32/80 Tbit/s | |
| 48/120 Tbit/s | 64/160 Tbit/s |
| Forwarding Performance | |
| 7,200 Mpps | |
| 14,400 Mpps | |
| 7,200 Mpps | |
| 14,400 Mpps | |
| 21,600 Mpps | 28,800 Mpps |
| Service Slots | |
| 4 | |
| 8 | |
| 4 | |
| 8 | |
| 12 | 16 |
| Switching Fabric Module Slots | |
| 2 | |
| 4 | |
| 6 | |
| 6 | |
| 6 | |
| 6 | |
| Fabric Architecture | Clos architecture, cell switching, VoQ, and distributed deep buffer |
| Airflow Design | Strict front-to-back airflow design |
| Device Virtualization | VS (1:16 virtualization) CSS SVF |
| Network Virtualization | Large Layer 2 TRILL network Overlay virtualized (VXLAN/NVGRE) hardware gateway |
| VM awareness | Agile Controller |
| Data Center Interconnection | EVN supporting inter-DC Layer 2 network interconnections |
| SDN | OPS |
