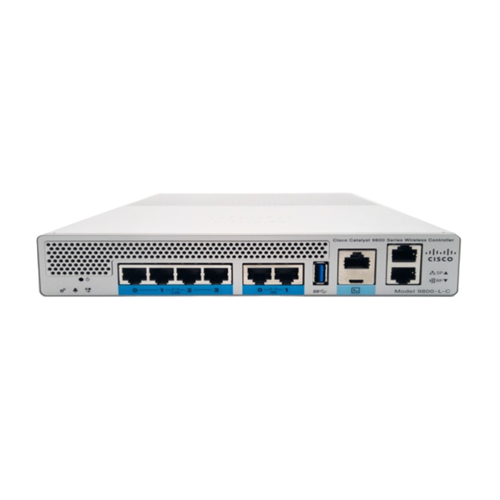

On sale Fiber Uplink C9800-L-F-K9 Enterprise Wireless Controller Manage 150 Aps
Short Description:
| C9800-L-F-K9 Specification | |
| Description | Cisco Catalyst 9800-L Wireless Controller_Fiber Uplink (ships with one AC Power Adapter) |
| Dimensions (H x W x D) | 1.58 in. (4.02 cm) x8.5 in. (21.59 cm)x9.06 in. (23.01 cm) |
| Maximum number of access points | 250 |
| Maximum number of clients | 5000 |
| Maximum throughput | 5 Gbps |
| Maximum WLANs | 4096 |
| Maximum VLANs | 4096 |
| Fixed uplinks | 2x 10G/Multigigabit copper or 2x 10G/Multigigabit fiber |
| Power supply | 110W, 12VDC, AC/DC adapter |
| Maximum power consumption | 84.5W (assumes 2pc 2.5W SFP and with 4.5W USB load) |
| Deployment modes | Centralized, Cisco FlexConnect®, and fabric |
| Form factor | 1RU; half-width chassis allows side-by-side installation in standard 19-in. rack |
| License | Smart License enabled |
| Software | Cisco IOS XE |
| Management | Cisco DNA Center, Cisco Prime® Infrastructure, and third party (open standards APIs) |
| Interoperability | AireOS-based controllers |
| Access points | Cisco Aironet® 802.11ac Wave 1 and Wave 2 access points, Cisco Catalyst 9100 802.11ax access points |
| Wireless | IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11n, 802.11k, 802.11r, 802.11u, 802.11w, 802.11ac Wave1 andWave2, 802.11ax |
| Wired, switching, and routing | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX specification, 1000BASE-T, 1000BASE-SX, 1000-BASE-LH, IEEE 802.1Q VLAN tagging, IEEE802.1AX Link Aggregation |
| Data Requests For Comments (RFCs) | • RFC 768 UDP• RFC 791 IP• RFC 2460 IPv6• RFC 792 ICMP• RFC 793 TCP• RFC 826 ARP• RFC 1122 Requirements for Internet Hosts• RFC 1519 CIDR• RFC 1542 BOOTP• RFC 2131 DHCP• RFC 5415 CAPWAP Protocol Specification• RFC 5416 CAPWAP Binding for 802.11 |
| Security standards | • Wi-Fi Protected Access (WPA)• IEEE 802.11i (WPA2, RSN)• RFC 1321 MD5 Message-Digest Algorithm• RFC 1851 ESP Triple DES Transform• RFC 2104 HMAC: Keyed-Hashing for Message Authentication• RFC 2246 TLS Protocol Version 1.0• RFC 2401 Security Architecture for the Internet Protocol• RFC 2403 HMAC-MD5-96 within ESP and AH• RFC 2404 HMAC-SHA-1-96 within ESP and AH• RFC 2405 ESP DES-CBC Cipher Algorithm with Explicit IV• RFC 2407 Interpretation for ISAKMP• RFC 2408 ISAKMP• RFC 2409 IKE• RFC 2451 ESP CBC-Mode Cipher Algorithms• RFC 3280 Internet X.509 PKI Certificate and CRL Profile• RFC 4347 Datagram Transport Layer Security• RFC 5246 TLS Protocol Version 1.2 |
