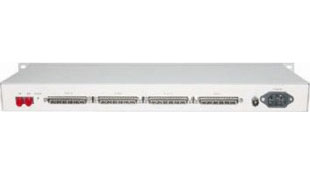

8E1 PDH Multiplexer
The 16E1 PDH Multiplexer can multiplex 16E1 a in one fiber to transmit. It is suitable for low capacity, point-to-point application of remote transmission. The circuit part of the equipment is fully digitized. The whole equipment is reliable, stable, easy to install and maintain. It has good temperature and voltage characteristics, complete alarm functions, one RS232 asynchronous interface and remote loop back functions(from software). At the same time, it can be managed by management software.
Specification
Product features:
Provide up to 16E1 channels ,Fiber port bit rate:150Mps,up to 50km
distance without repeater;
*E1 Line code: HDB3, compliant to G.703, G.823 and G.742.;
*E1 channel support both 75ohm & 120ohm impedance;
*Complete alarm functions;
*Provide an RS232 asynchronous interface;
*Support the local/remote E1 loop back;
*Remote loop back provided by software and hardware;
*Provide RS232 port for management, GUI interface;
*Stand alone,220VAC or -48VDC power supply optional;
Specification:
Optical Port :
Port number: 1
Bit rate: 150Mb/s /-50ppm
Wavelength: 1310nm, 1550nm
Distance: 0 - 50Km
Connector: FC/PC
E1 Port:
Port number: 4
Bit rate: 2.048Mbps( /-100ppm)
Impedance: 75ohm or 120ohm
Line Code: HDB3, compliance with ITU-T G.703
Ethernet Port
Port number: 1 optional
Frame Size: 64 - 1536 bytes
MAC address: 1k
MAC aging time: 5mins
Power Supply
Input voltage：When -48V， -40V ～ -60V (DC) is allowed
When ~220V， 175V ～ 264V (AC) is allowed.
Overall power ：5W
Operating Environment:
Temperature：0℃--45℃
Humidity：95％，no condense
Standalone Size:
483mm(L)×44.45mm(W)×200mm(H)
Weight：3.5kgW
Solutions
.
Model
HY-PDH480:8E1 Normal Optical transceiver
