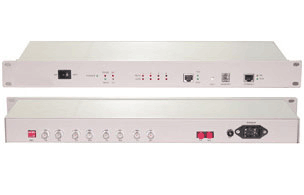

4E1 PDH Multiplexer
The 4E1 PDH Multiplexer can multiplex 4E1 and 1 optional port Ethernet (10/100Mbps) signals in one fiber to transmit. It is suitable for low capacity, point-to-point application of remote transmission. The circuit part of the equipment is fully digitized. The whole equipment is reliable, stable, easy to install and maintain. It has good temperature and voltage characteristics, complete alarm functions, one RS232 asynchronous interface and remote loop back functions(from software). At the same time, it can be managed by management software.
Specification
Product features:
Provide up to 4E1 channels and 1 optional port 10/100Mbps Ethernet
channel ,Fiber port bit rate:150Mps,up to 50km distance without
repeater;
*E1 Line code: HDB3, compliant to G.703, G.823 and G.742.;
*E1 channel support both 75ohm & 120ohm impedance;
*Ethernet port support 10/100Mbps auto-detection, Full/Half Duplex
auto-negotiation ;
*Ethernet port can transmit VLAN tag;
*Complete alarm functions;
*Provide an RS232 asynchronous interface;
*Support the local/remote E1 loop back;
*Remote loop back provided by software and hardware;
*Provide RS232 port for management, GUI interface;
*Stand alone,220VAC or -48VDC power supply optional;
Specification:
Optical Port :
Port number: 1
Bit rate: 150Mb/s /-50ppm
Wavelength: 1310nm, 1550nm
Distance: 0 - 50Km
Connector: FC/PC
E1 Port:
Port number: 4
Bit rate: 2.048Mbps( /-100ppm)
Impedance: 75ohm or 120ohm
Line Code: HDB3, compliance with ITU-T G.703
Ethernet Port
Port number: 1 optional
Speed: 10/100Mbps line speed
Duplex: Half/Full auto-negotiate
Frame Size: 64 - 1536 bytes
MAC address: 1k
MAC aging time: 5mins
Power Supply
Input voltage：When -48V， -40V ～ -60V (DC) is allowed
When ~220V， 175V ～ 264V (AC) is allowed.
Overall power ：5W
Operating Environment:
Temperature：0℃--45℃
Humidity：95％，no condense
Standalone Size:
483mm(L)×44.45mm(W)×200mm(H)
Weight：2.5kg

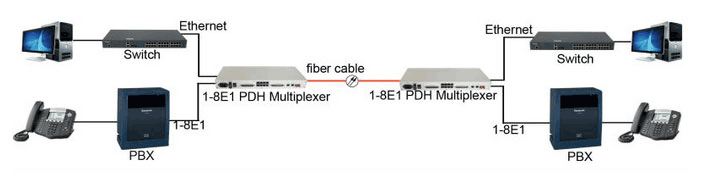

Solutions
.
Model
HY-PDH120:4E1 Normal Optical transceiver
HYC-PDH120E:4E1+100M Ethernet optical Ethernet optical transceiver
