5 port POE Ethernet 10/100Mbps Switch
Specification
Description
The HY-S61P5, with the super long range switch could enrich data
transmition up to 200 Meters and with VLan feature, is designed for
residential building in the corridor-level broadband switching
equipment, for the edge of the access and LAN to provide high-quality
network connections.

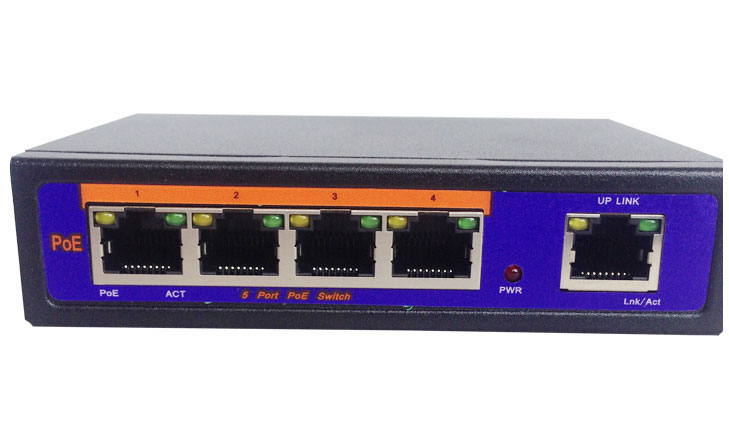

The HY-S61P5 is in the desk top style housing. It provides 5 10/100M
Base-TX ports. It provides 4 PoE Injector.
Feature:
Desktop style, Powerful PoE switch decided for CCTV
1X 10/100M Uplink Port for NVR or Router
Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af
Provides Four 10/100M Base-TX ports
Provides 4 PoE injector and DC adaptor
High back-plane bandwidth 1 Gbps
IEEE802.3x Flow control
Surge protection for power port and data ports
EMI standards complies with FCC, CE class B
|
Item |
Description |
|
Summarize |
|
|
Fixed port |
5 10/100M Base-TX ports. |
|
LED Indicators |
PWR, PoE, Link/Act |
|
Input voltage |
100V～240V AC，50/60Hz |
|
Power consumption |
65W |
|
Operating temperature |
-20℃～40℃. |
|
Storage temperature |
- 20℃～70℃. |
|
Relative humidity |
20%～85% (non-condensing). |
|
Thermal methods |
Built-in Noiseless FAN. |
|
Switching capacity |
1G. |
|
MAC address table |
1 K. |
|
Traffic control |
IEEE 802.3x full-duplex flow control. |
|
PoE |
|
|
PoE port |
4 10/100M Base-TX ports. |
|
PoE Standard |
IEE802.3af, per port 15.5W. |
|
Pin assignment |
V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6). |

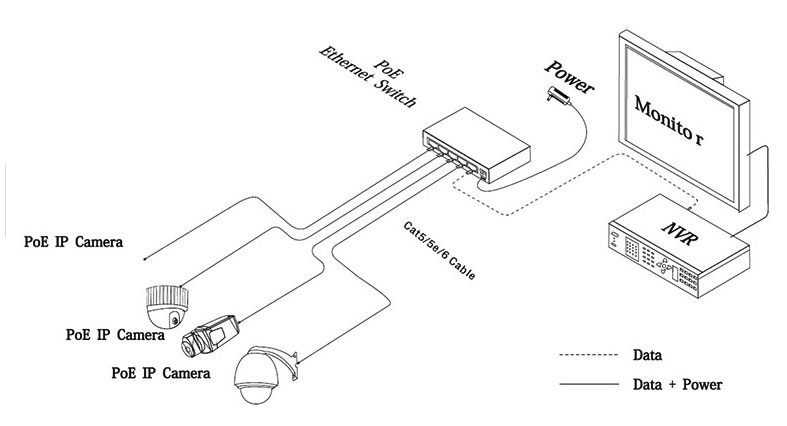

Solutions
.
Model
|
Model
|
Specifications
|
|
HY-S61P5 |
5 Port
10/100Mbps
4xPoE Switch
15.4W/Per
port
|
