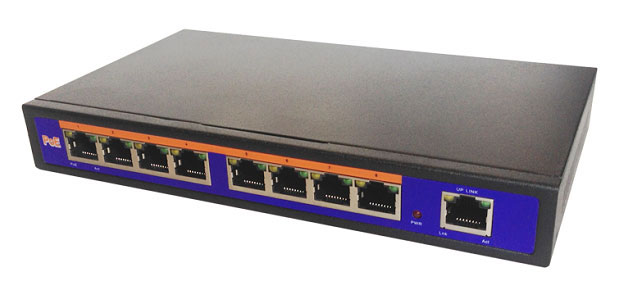

9 port POE Ethernet 10/100Mbps Switch
Specification
The HY-S61P9, with the super long range switch could enrich data
transmition up to 200 Meters and with VLan feature, is designed for
residential building in the corridor-level broadband switching
equipment, for the edge of the access and LAN to provide
high-quality network connections.
The HY-S61P9 is in the desk top style housing. It provides 9
x10/100M Base-TX ports. It provides 8 PoE Injector.
Feature:
Desktop style, Powerful PoE switch decided for CCTV
1X 10/100M Uplink Port for NVR or Router
Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af
Provides Four 10/100M Base-TX ports
Provides 8 PoE injector and DC adaptor
High back-plane bandwidth 1.8 Gbps
IEEE802.3x Flow control
Surge protection for power port and data ports
EMI standards complies with FCC, CE class B
|
Item |
Description |
|
Summarize |
|
|
Fixed port |
9 10/100M Base-TX ports. |
|
LED Indicators |
PWR, PoE, Link/Act |
|
Input voltage |
100V～240V AC，50/60Hz |
|
Power consumption |
120W |
|
Operating temperature |
-20℃～70℃. |
|
Storage temperature |
- 20℃～70℃. |
|
Relative humidity |
20%～85% (non-condensing). |
|
Thermal methods |
Built-in Noiseless FAN. |
|
Switching capacity |
1.6G. |
|
MAC address table |
1 K. |
|
Traffic control |
IEEE 802.3x full-duplex flow control. |
|
PoE |
|
|
PoE port |
8 10/100M Base-TX ports. |
|
PoE Standard |
IEE802.3af, per port 15.5W. |
|
Pin assignment |
V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6). |
Solutions
.
Model
|
Model
|
Specifications
|
|
HY-S61P9 |
9 Port 10/100Mbps 4xPoE Switch 15.4W/Per port
|
