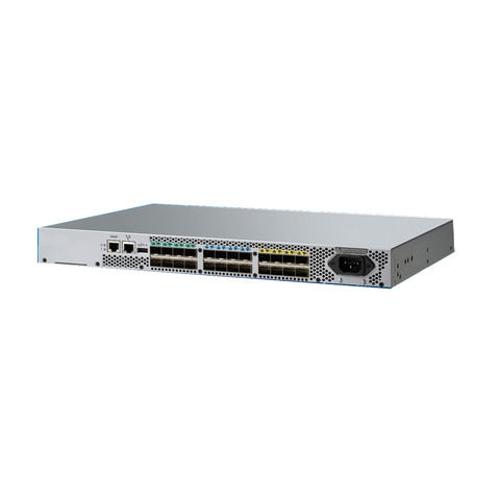

Broadcom Brocade G720 Switch BR-G720-24-32G-R 24 active port 64GB FC Switch
Short Description:
| Main features | Systems Architecture |
| Power consumption | 349W with all 64 ports operating at 64G (48 ports populated with 64G SWL transceivers and 8 ports populated with 2x64G SFP-DD SWL transceivers). 57W for an empty chassis with no transceivers. |
| Scalability | Full-fabric architecture with a maximum of 239 switches |
| Certified maximum | 4K active nodes; 56 switches, 19 hops in Brocade Fabric OS fabrics. |
| Management access | 10/100/1000Mb/s Ethernet (RJ-45) port and serial console port (mini-USB). |
| ISL Trunking | Frame-based trunking with up to eight SFP+ ports per ISL trunk; up to 512Gb/s per ISL trunk. Exchange based load balancing across ISLs with Dynamic Path Selection (DPS) included in Brocade Fabric OS. |
| USB | One standard USB port for firmware download, SupportSave, and configuration upload or download. |
| Vibration | Operating: 0.25 Grms sine, 0.40 Grms random, 5 Hz to 500 Hz Nonoperating: 5 Hz at 0.50 Grms; 10–500 Hz at 1.00 Grms (sine vibration); 3–500 Hz at 1.12 Grms (random vibration) |
| Power supply | Dual, hot-swappable redundant power supplies with integrated system cooling fans. 80 Plus Gold. |
