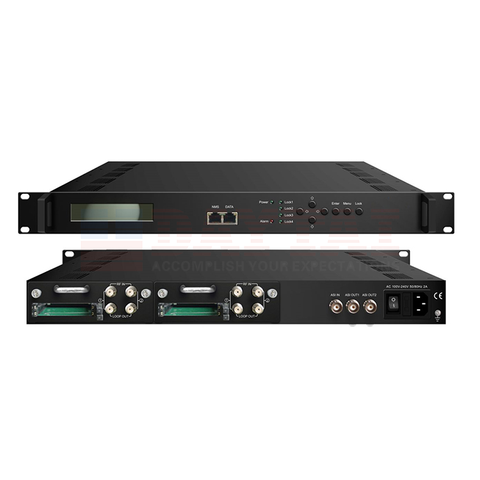

4 Tuner Inputs 1 ASI & 1 IP (UDP) input for re-mux Support BISS descrambling Up to 120 Mbps Headend IRD
Short Description:
| Descrambling | |
| CAM/CI Quantity | |
| 4 | |
| BISS Mode | |
| Mode 1, Mode E (up to120Mbps) | |
| Output | |
| 1*MPTS & 8*SPTS over UDP, RTP/RTSP.100 Base-T Ethernet interface (unicast / multicast) | |
| 2×ASI mirrored out, BNC interface | |
| System | |
| Local interface | |
| LCD + control buttons | |
| Remote management | |
| Web-server Management | |
| Language | |
| English | |
| Upgrade | |
| USB, web management | |
| Miscellaneous | |
| Dimension | |
| 482*300*44.5mm (W×L×H) | |
| Approx weight | |
| 3.5kg | |
| Environment | |
| 0~45℃(work)；-20~80℃（Storage） | |
| Power requirements | |
| 100~240VAC, 50/60Hz | |
| Power consumption | |
| 20W |
