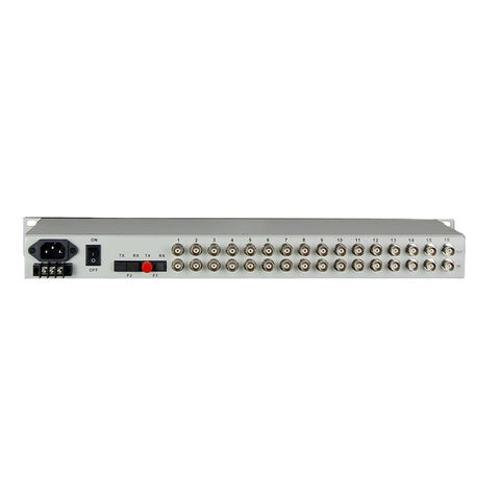

High Quality 16E1 PDH Fiber Optic Multiplexer With 8*FE + 2*Serial
Short Description:
| Model | FCP-E16F4 |
| Functional Description | 16E1+8FE PDH ,19''inch 1U, Optional(hotline telephone，Console+SNMP,1+1 fiber back up) |
| Port Description | 1+1 optical port, 16 E1 interfaces (75/120 ohms), 8 FE interfaces,1*RS232 Console interface,1*SNMP Ethernet interface, oneengineering order-wire telephone interface |
| Power | Power supply: AC180V ~ 260V；DC –48V；DC +24V Power consumption: ≤10W |
| Dimension | Product Size: 19 inch 1U 483X138X44mm(WXDXH) |
| Weight | 19inch 3KG |
