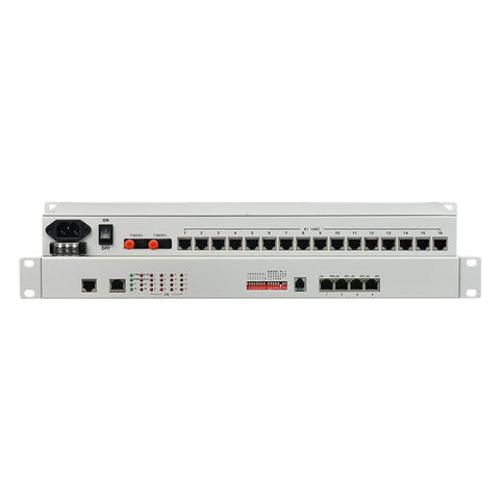

OEM Supplier Multiplexor 16E1 PDH 16 E1 over Fiber Optical Multiplexer With Fast Gigabit Ethernet
Short Description:
| Fiber | |
| Multi-mode Fiber | 50/125um, 62.5/125um |
| Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km) | |
| Wave Length: 820nm | |
| Transmitting power: -12dBm (Min) ~-9dBm (Max) | |
| Receiver sensitivity: -28dBm (Min) | |
| Link budget: 16dBm | |
| Single-mode Fiber | 8/125um, 9/125um |
| Maximum transmission distance: 40Km | |
| Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km) | |
| Wave Length: 1310nm | |
| Transmitting power: -9dBm (Min) ~-8dBm (Max) | |
| Receiver sensitivity: -27dBm (Min) | |
| Link budget: 18dBm | |
| E1 Interface | |
| Interface Standard: comply with protocol G.703; | |
| Interface Rate: n*64Kbps±50ppm; | |
| Interface Code: HDB3; | |
| E1 Impedance: 75Ω (unbalance), 120Ω (balance); | |
| Jitter tolerance: In accord with protocol G.742 and G.823 | |
| Allowed Attenuation: 0~6dBm | |
| Gigabit Ethernet interface (10/100M) | |
| Interface rate: 10/100 Mbps, half/full duplex auto-negotiation | |
| Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) | |
| MAC Address Capability: 4096 | |
| Connector: RJ45, support Auto-MDIX | |
| Power | |
| Power supply: AC180V ~ 260V;DC –48V;DC +24V | |
| Power consumption: ≤10W | |
| Dimension | |
| Product size: 19 inch 1U 483(width)X138(depth)X44(height)mm | |
| Simple packaging: 522X198X82mm( WXDXH) | |
| Piece weight: 3KG | |
| Working environment | |
| Working temperature: -10°C ~ 50°C | |
| Working Humidity: 5%~95 % (no condensation) | |
| Storage temperature: -40°C ~ 80°C | |
| Storage Humidity: 5%~95 % (no condensation) |
