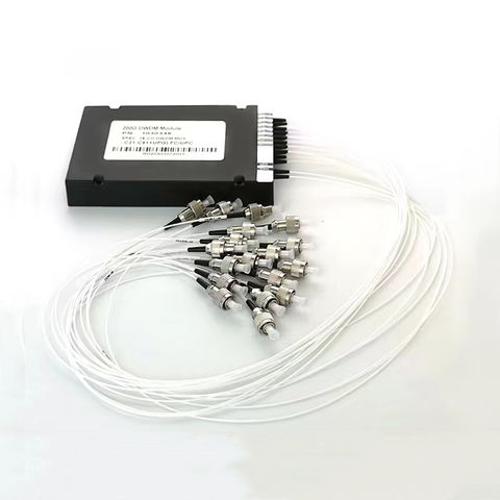

High density ABS Module DWDM 4/8/16/32 Channel Wavelength Division Multiplexing 100G Mux Demux
Short Description:
| Specifications | |
| unit | Technical data |
| Channel Center Wavelength | |
| nm | C53 |
| Channel Spacing | |
| GHZ | 100 |
| Center Wavelength Tolerance | |
| nm | ±0.06 |
| Channel Passband width | |
| nm | ≥0.38 |
| Transmission IL | |
| dB | ≤1.1 |
| Reflection IL | |
| dB | ≤0.6 |
| Adjcent-isolation | |
| dB | ≥30 |
| Non-Adjcent-isolation | |
| dB | ≥40 |
| Reflection Isolation | |
| dB | ≥13 |
| Channel Ripple | |
| nm | ≤0.5 |
| Wavelength thermal stability | |
| nm/℃ | ≤0.001 |
| IL thermal stability | |
| dB/℃ | ≤0.008 |
| Directivity | |
| dB | ≥55 |
| Return loss | |
| dB | ≥45 |
| PDL | |
| dB | ≤0.1 |
| Max.power | |
| mw | 300 |
| Working temperature | |
| ℃ | -5~65 |
| Storage temperature | |
| ℃ | -40~85 |
| Fiber type | |
| - | G657A1 |
| Fiber length | |
| m | ≥1.0 |
| Package dimension | |
| mm | 130*100*25 |
| Connector type | |
| - | FC/PC |
