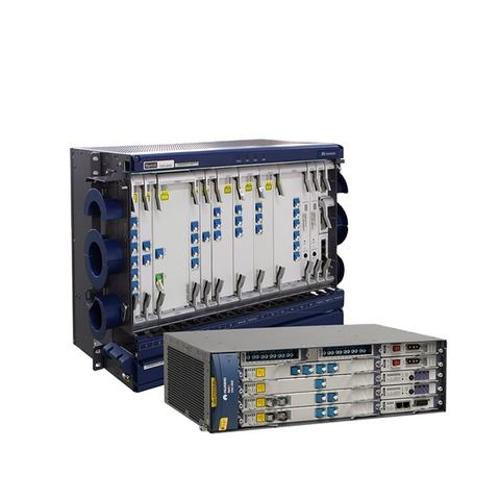

Huawei OSN 3800 Optical Transmission Wavelength Division Multiplexing DWDM
Short Description:
| Board Category | |
| Board Name | Board Description |
| Optical transponder unitTN11L4G | |
| Line wavelength conversion unit with 4 x Gigabit Ethernet line capacity | |
| TN12LDX | 2 x 10 Gbit/s wavelength conversion unit |
| TN11LEM24 | 22 x GE + 2 x 10GE + 2 x OTU2 Ethernet Switch board |
| TN11LOA | 8 x Any-rate MUX OTU2 Wavelength Conversion Board |
| TN11LOG | 8 x Gigabit Ethernet unit |
| TN11LOM | 8-port multi-service multiplexing & optical wavelength conversion board |
| TN11LQG | 4 x GE-multiplex-optical wavelength conversion board |
| TN13LQM | 4-channel multi-rate (100Mbit/s-2.5Gbit/s) wavelength conversion unit |
| TN12LQMD | 4-channel multi-rate (100Mbit/s-2.5Gbit/s) wavelength conversion unit, dual fed and selective receiving |
| TN12LQMS | 4-channel multi-rate (100Mbit/s-2.5Gbit/s) wavelength conversion unit, single fed and single receiving |
| TN12LSC | 100 Gbit/s wavelength conversion board |
| TN12LSX | 10 Gbit/s wavelength conversion unit |
| TN11LSXR | 10 Gbit/s wavelength conversion relay unit |
| TN11LTX | 10-Port 10 Gbit/s Service Multiplexing & Optical Wavelength Conversion Board |
| TN12LWXS | arbitrary rate (16Mbit/s-2.7Gbit/s) wavelength conversion board (single transmit) |
| TN11TMX | 4 channels STM-16/OC-48/OTU1 asynchronism mux OTU-2 wavelength conversion board |
| OTN Tributary unit | |
| TN11TBE | 10 Gigabit ethernet tributary board |
| TN52TOG | 8 x GE tributary service processing board |
| TN11TOM | 8 x multi-rate ports service processing board |
| TN12TQM | 4 x multi-rate tributary service processing board |
| OTN Line unit | |
| TN12NS2 | 10G Line Service Processing Board |
| Optical multiplexer and demultiplexer unit | |
| TN21DFIU | bidirectional fiber interface board |
| TN13FIUa | fiber interface unit |
| Optical add and drop multiplexing unit | |
| TN21CMR1 | CWDM 1-channel optical add/drop multiplexing unit |
| TN11CMR2 | CWDM 2-channel optical add/drop multiplexing unit |
| TN11CMR4 | CWDM 4-channel optical add/drop multiplexing unit |
| TN11DMR1 | CWDM 1-channel bidirectional optical add/drop multiplexing board |
| TN11MR2 | 2-channel optical add/drop multiplexing unit |
| TN11MR4 | 4-channel optical add/drop multiplexing unit |
| TN11SBM2 | 2-channel CWDM single-fiber bidirectional add/drop board |
| Optical amplifier unit | |
| TN11DAS1 | optical amplifier unit |
| TN11OAU1 | optical amplifier unit |
| TN11OBU1 | optical booster unit |
| TN11OBU2 | optical booster unit |
| TN11RAU1 | backward raman and erbium doped fiber hybrid optical amplifier unit |
| Cross-connect unit and system and communication unit | |
| TN22SCC | system control and communication unit |
| TN22AUX | system auxiliary interface unit |
| TN61AUX | |
| Optical supervisory channel unit | |
| TN11HSC1 | high power unidirectional optical supervisory channel board |
| TN12SC1 | unidirectional optical supervisory channel unit |
| TN12SC2 | bidirectional optical supervisory channel unit |
| TN11ST2 | bidirectional optical supervisory channel and timing transmission unit |
| Optical protection unit | |
| TN12DCP | 2-channel optical path protection unit |
| TN12OLP | optical line protection unit |
| TN11SCS | sync optical channel separator unit |
| Spectrum analyzer unit | |
| TN11MCA4 | 4-channel spectrum analyzer unit |
| TN11MCA8 | 8-channel spectrum analyzer unit |
| TN11OPM8 | 8-channel optical power monitoring board |
| Variable optical attenuator unit | |
| TN12VA1 | 1-channel variable optical attenuator unit |
| TN12VA4 | 4-channel variable optical attenuator unit |
| Dispersion equalizing unit | |
| TN11DCU | dispersion compensation board |
| Interface area unitb | |
| TN61PIU | power interface unit |
| TN21APIU | AC Power Interface Unit |
