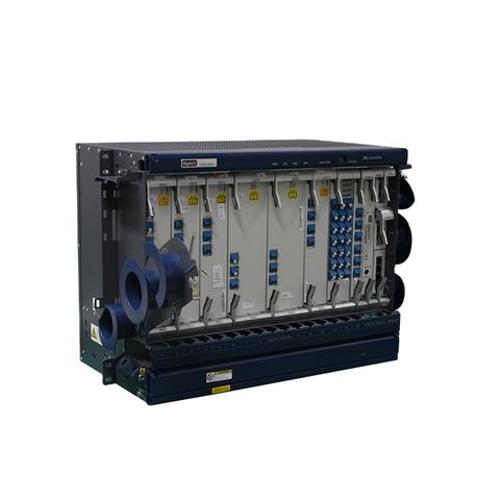

Huawei OSN 8800 fiber optical multiplexer 64/32/16 slots DWDM
Short Description:
| OTN Overhead | |
| Specifies whether to enable MSI overheads automatically. If Huawei OTN NEs access OTUk services from third-party NEs, timeslots need to be manually allocated for MSI overheads. In this situation, set MSI Auto Enable to Disabled. Only when AIS Insertion Enabling of PLM or AIS Insertion Enabling of MSIM is set to ENABLE, an ODU-PLM or ODU-MSIM alarm can trigger the Client 1+1, ODUk SNCP, tributary SNCP protection switchovers. | Configuring MSI to Enable Connections Between Huawei and Third-Party Equipment and Parameters: MSI Overhead. Configuring the AIS Insertion Enabling of PLM and AIS Insertion Enabling of MSIM for Protection Switching andParameters: PM Overhead. |
| Optical Line Protection | |
| The TN12HSC1 board is added and it supports OLP bidirectional switching. | Availability |
| Client 1+1 Protection | |
| The TN15LSC/ THA board starts to support the feature. The TN53TSXL/ TN15LSXL/ TN13LQM/ TN12LDX/ TN11LOA/ TN53TDX board starts to support the switching detection time parameter. The ODU-PLM and ODU-MSIM alarms are added as conditions for triggering client 1+1 protection switching. | Availability Dependency and Limitation Trigger Conditions |
| Intra-Board 1+1 Protection | |
| The TN57NS4/ TN15LSC board is added and it supports intra-board 1+1 protection. The TN52NS3/ TN54NS3/ TN53ND2/ TN15LSXL/ TN13LQM/ TN12LDX/ TN53NS2/ TN11LOA board starts to support the switching detection time parameter. The function of setting trigger conditions is newly supported. | Trigger Conditions Dependencies and Limitations Setting Trigger Conditions |
| ODUk SNCP | |
| The TN57NS4/ NS4M/ THA board is added and it supports ODUk SNCP protection. The TN52NS3/ TN54NS3/ TN53ND2/ TN53TSXL/ TN53TQX/ TN53NS2/ TN53TDX board starts to support the switching detection time parameter. The ODU-PLM and ODU-MSIM alarms are added as conditions for triggering ODUk SNCP protection switching. | Trigger Conditions Dependency and Limitation |
| Tributary SNCP | |
| The TN57NS4/ THA/ NS4M board is added and it supports tributary SNCP protection. The ODU-PLM and ODU-MSIM alarms are added as conditions for triggering tributary SNCP protection switching. | Trigger Conditions Dependency and Limitation |
| LPT | |
| The THA board is added and it supports LPT. | Availability |
| ALS | |
| The THA board is added and it supports ALS. | Introduction Dependency and Limitation |
| IPA | |
| The inter-NE IPA function is supported. The NS4M board is added and it can be used as the auxiliary detection board. | Trigger Condition Dependencies and Limitations |
| IPA of Raman System | |
| The inter-NE IPA function is supported. The NS4M board is added and it can be used as the auxiliary detection boards. | Trigger Condition Dependencies and Limitations |
