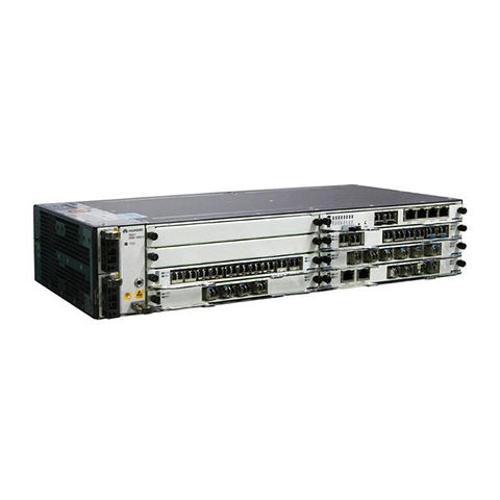

Optical transport system OSN 1800 DWDM 40GE
Short Description:
| Optical Transponder Board | |
| ELOM | Enhanced 8 x Multi-rate Ports Wavelength Conversion Board |
| ELQM | Enhanced 4 x Multi-rate Ports Multiplexing Optical Wavelength Conversion Board |
| LDE | Double Port EPON/GE Access Wavelength Conversion Board |
| LDGF | Double GE Services & Double FE Services Wavelength Conversion Board with FEC |
| LDGF2 | Double 2 x GE Wavelength Conversion Board |
| LDX | 2 x 10 Gbit/s Wavelength Conversion Board |
| LEM18 | 16 x GE + 2 x 10GE LAN + 2 x OTU2 Ethernet Switch board |
| LOE | 8 Port EPON/GE Access Wavelength Conversion Board |
| LQG | 4 x GE Wavelength Conversion Board |
| LQM | 4 x Multi-rate Ports Wavelength Conversion Board |
| LQM2 | Double 4 x Multi-rate Ports Wavelength Conversion Board |
| LQPL | OLT Side 4 Port GPON/STM-16/OTU1 Access Wavelength Conversion Board |
| LQPU | ONU Side 4 Port GPON/STM-16/OTU1 Access Wavelength Conversion Board |
| LSPL | OLT Side Single Port GPON Access Wavelength Conversion Board |
| LSPR | Single Port GPON Extension REG Board |
| LSPU | ONU Side Single Port GPON Access Wavelength Conversion Board |
| LSX | 10 Gbit/s Wavelength Conversion Board |
| LWX2 | Double Arbitrary Bit Rate Wavelength Conversion Board |
| TSP | 21-channel E1/T1 and 2-channel STM-1 Service Convergence and Wavelength Conversion Board |
| LEG16 | 16 x GE Ethernet Switch board |
| Optical Multiplexer and Demultiplexer Board | |
| FIU | Fiber Interface Unit |
| X40 | 40-Channel Multiplexing or Demultiplexing Board |
| Optical Add and Drop Multiplexer Board | |
| DMD1 | Bidirectional Single Channel Optical Add/drop Multiplexer Board |
| DMD1S | Bidirectional Single Channel Optical Add/drop Multiplexer Board with OSC |
| DMD2 | Bidirectional Double Channel Optical Add/drop Multiplexer Board |
| DMD2S | Bidirectional Double Channel Optical Add/drop Multiplexer Board with OSC |
| MD8 | 8 Channel Multiplexer and Demultiplexer Board |
| MD8S | 8 Channel Multiplexer and Demultiplexer Board with OSC |
| MR1 | Single Channel Optical Add/Drop Multiplexer Board |
| MR1S | Single Channel Optical Add/drop Multiplexer Board with OSC |
| MR2 | Double Channel Optical Add/drop Multiplexer Board |
| MR2S | Double Channel Optical Add/drop Multiplexer Board with OSC |
| MR4 | Four Channel Optical Add/drop Multiplexer Board |
| MR4S | Four Channel Optical Add/drop Multiplexer Board with OSC |
| MR8 | Eight Channel Optical Add/drop Multiplexer Board |
| SBM1 | Single Fiber Bidirectional Single Channel Optical Add/drop Multiplexer Configuration Board |
| SBM2 | Single Fiber Bidirectional Double Channel Optical Add/drop Multiplexer Configuration Board |
| SBM4 | Single Fiber Bidirectional Four Channel Optical Add/drop Multiplexer Configuration Board |
| SBM8 | Single Fiber Bidirectional Eight Channel Optical Add/drop Multiplexer Configuration Board |
| Optical Amplifying Board | |
| OBU | Optical Booster Board |
| OPU | Optical Preamplifier Unit |
| System Control and Communication Board | |
| CTL | OADM Control Board |
| SCC | System Control & Communication Board with OSC |
| Optical Protection Board | |
| OLP | Optical Line Protection Board |
| SCS | Sync Optical Channel Separator Board |
| Power Supply Access Board | |
| APIU | AC Power Interface Unit |
| PIU | DC Power Board |
| Heat Dissipation Board | |
| FAN | Fan Board |
