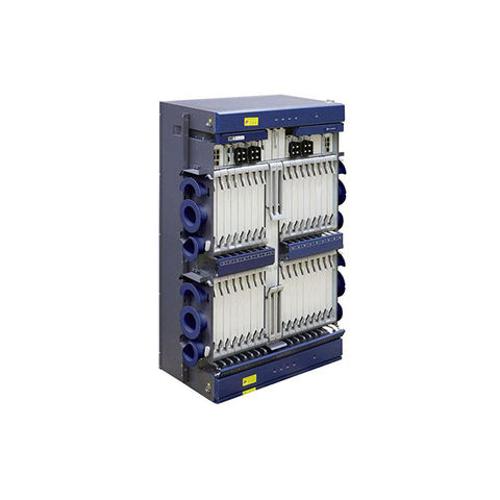

OSN 8800 T64 100G DWDM Fiber Optic Transceiver
Short Description:
| Specifications | |
| OptiX OSN 8800 UPS | |
| OptiX OSN 8800 T16 | |
| OptiX OSN 8800 T32 | OptiX OSN 8800 T64 |
| Dimensions (H x W x D) | |
| 397 mm x 442 mm x 291 mm | |
| 450 mm x 498 mm x 295 mm | |
| 900 mm x 498 mm x 295 mm | 900 mm x 498 mm x 580 mm |
| Number of Service Slots | |
| 16 | |
| 16 | |
| 32 | 64 |
| Switching Capability | |
| 1.6T ODUk, 640G VC4 & 20G VC3 & VC12, 800G Packet | |
| 3.2T ODUk, 1.28T VC4 & 80G VC3 & VC12, 1.6T Packet | 6.4T ODUk, 1.28T VC4 & 80G VC3 & VC12 |
| Channel Spacing | 50 GHz to 100 GHz fixed grid for 40 to 80 wavelengths 37.5 GHz to 400 GHz flex grid |
| Rate per Channel (maximum) | 100 GE, 200 GE, 400 GE |
| Wavelength Range | DWDM: 1,529.16 nm to 1,560.61 nm (C band, ITU-T G.694.1) |
| Power Supply | -48V DC to -60V DC |
