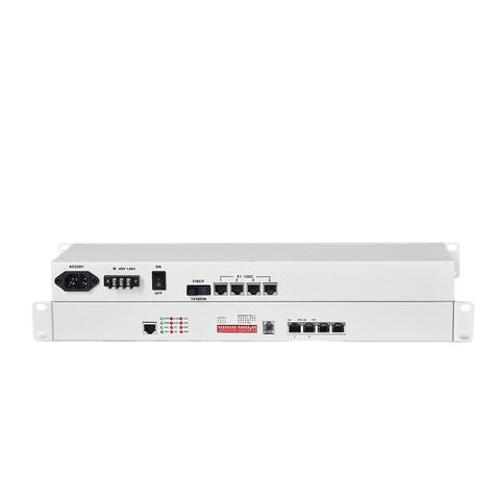

converter 4e1 fom g703 to fiber converter
Short Description:
| Fiber Optical port | |
| 1 | E1 Interface |
| Optical Fiber | |
| Single/Dual fiber | |
| Interface Standard | comply with protocol G.703 |
| Fiber interface | |
| FC/SC/ST/LC(SFP) | |
| Interface Rate | n*64Kbps±50ppm |
| Wavelength | |
| 850nm/1310nm Multimode1310nm/1550nm Single mode | |
| Interface Code | HDB3 |
| Transmission distance | |
| 20~120Km | |
| E1 Impedance | 75Ω (unbalance), 120Ω (balance) |
| Typical transmit power | |
| Single mode1310/1550nm≥-9dBmMultimode 850nm: -18dBmMultimode 1310nm: -25dBm | |
| Jitter tolerance | In accord with protocol G.742 and G.823 |
| Receive sensitivity range | |
| -33dBm~- 40dBm | |
| Allowed Attenuation | 0~6dBm |
