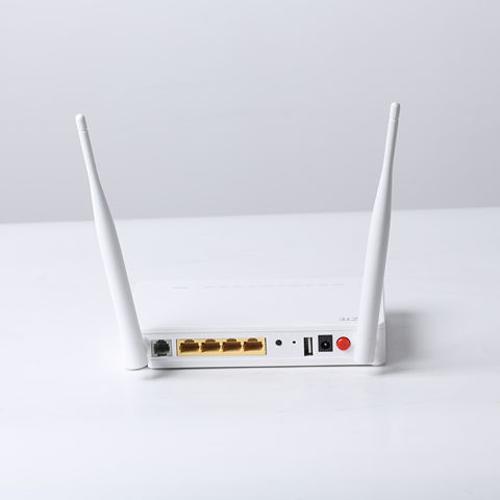

ZTE OEM ZXHN F660 4GE TP+2POTS+Wifi ONT Modem FTTH Gpon ONU Network Access Xpon Original
Short Description:
| Manufacturer | ZTE |
| Model | ZXHN F660 V8 |
| GPON features | Optical port: 1 x GPON interface (SC/PC) |
| Transmission distance: 20 km | |
| Transmission speed | |
| - download: 2.488 Gb/s | |
| - upload: 1.244 Gb/s | |
| User network interface | 1 x 10/100/1000 Base-T, half/full duplex, auto MDI/MDIX, auto negotiation |
| 3 x 10/100 Base-T, half/full duplex, auto MDI/MDIX, auto negotiation | |
| 1 x POTS interface | |
| 1 x Wi-Fi interface: IEEE 802.11b/g/n 2.4 GHz | |
| 2 x Wi-Fi antennas | |
| 1 x USB 2.0 host interface | |
| Optical module | Reception: 1480-1500 nm |
| Transmitting: 1290-1330 nm | |
| Receiver sensitivity: -28 dBm | |
| Transmitter optical power: 0.5 to 5 dBm | |
| Main features | |
| Supported services | VoIP, Internet, IPTV |
| GPON | 8 x T-CONT, 32 x GEM port |
| VLAN | 802.1Q, 802.1P, 802.1ad |
| MC address table | 1K |
| L3 functions | DHCP server/client, DNS client, NAT |
| IPv6 | Double stack, DS-Lite |
| VoIP | SIP/H.248, G.711/G.722/G.279, T.30/T.38 |
| Wi-Fi | 4 x SSID, 2x2 MIMO, WPS |
| Wi-Fi authentication | Common Key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA2-Enterprise |
| Multicast | IGMP v1/v2/snooping/Proxy, MLD v1 snooping |
| Multicast group per user port | 256 |
| QoS | Flow classification for services based on physical ports, MAC address, VLAN ID, VLAN priority level, IP address, SP/WRR/SP WRR |
| Management | Local Web, OMCI, TR069 |
| USB | DLNA DMS, USB backup, 3G/LTE adapter |
