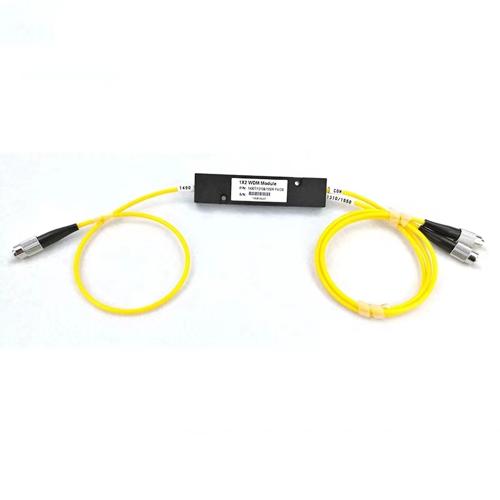

CATV WDM System 1310nm 1490nm 1550nm FWDM ABS BOX
Short Description:
| Parameter | |
| T1310 R1490&1550 | |
| Pass Band Wavelength Range (nm) | |
| 1260 ~ 1360 | |
| Reflection Band1 Wavelength Range (nm) | |
| 1480~1500 | |
| Reflection Band1 Wavelength Range (nm) | |
| 1540~1560 | |
| Insertion Loss (dB) | |
| Reflect Channel | |
| ≤0.6 | |
| Pass Channel | |
| ≤0.8 | |
| Pass Band Rippler(dB) | |
| <0.3 | |
| Isolation (dB) | |
| Reflect Channel | |
| > 15 | |
| Pass Channel | |
| >30 | |
| Insertion Loss Temperature Sensitivity (dB/℃) | |
| <0.005 | |
| Polarization Dependent Loss (dB) | |
| <0.1 | |
| Polarization Mode Dispersion (ps) | |
| <0.1 | |
| Directivity (dB) | |
| >50 | |
| Return Loss (dB) | |
| >50 | |
| Maximum Power Handling (mW) | |
| 500 | |
| Operating Temperature (℃) | |
| 0 ~+70 | |
| Storage Temperature (℃) | |
| -40 ~+85 | |
| Package Dimension (mm) | |
| 1. Φ5.5 x L35(bare fiber )2. Φ5.5 x L38(900um Loose tube )3. L90xW20xH9.5(2.0 mm or 3.0mm Cable) |
