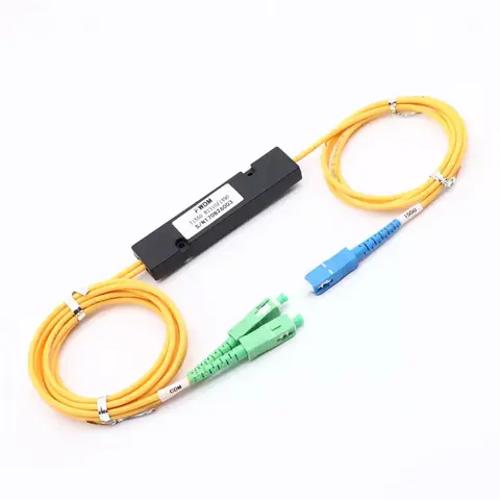

1310/1490 1550nm/High isolation/PON WDM FWDM
Short Description:
| Parameter | |
| FWDM T1550/R1310&1490 | |
| Pass Band Wavelength Range(nm) | |
| 1540~1550 | |
| Reflection band Wavelength Range(nm) | |
| 1260~1360/1480~1500 | |
| Insertion Loss(dB) | |
| Pass Channel | ≤0.6 |
| Refection Channel | ≤0.4 |
| Pass Band Ripple(dB) | |
| ＜0.3 | |
| Isolation(dB) | |
| Pass Channel | ＞30 |
| Refection Channel | ＞15 |
| Insertion Loss Temperature Sensitivity(dB) | |
| ＜0.5 | |
| Polarization Dependent Loss(dB) | |
| ＜0.1 | |
| Polarization Mode Dispersion (ps) | |
| ＜0.1 | |
| Directivity(dB) | |
| ＞50 | |
| Return Loss(dB) | |
| ＞45 | |
| Maximum Power Handing(mW) | |
| 300 | |
| Operating Temperature(℃) | |
| -5~+75 | |
| Storage Temperature(℃) | |
| -40~+85 |
