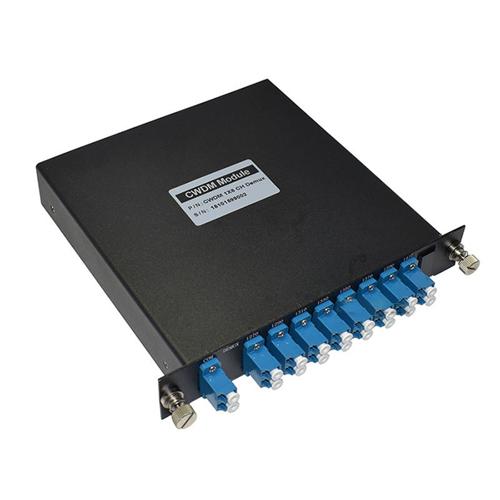

Single Fiber LGX Box CWDM module1270-1610nm 1271-1611nm ,Mux/Demux4CH 8CH 16CH 18CH and so on
Short Description:
| Parameter | |
| FWDM T4/R35 | |
| FWDM T5/R34 | |
| FWDM T3/R45 | FWDM T34/R5 |
| Pass Band Wavelength Range (nm)±10 | |
| 1480~1500 | |
| 1540~1560 | |
| 1260~1360 | 1260~1360 & 1480~1500 |
| Reflection Band 1 Wavelength Range(nm)±10 | |
| 1260~1360 | |
| 1260~1360 | |
| 1480~1500 | Pass Channel |
| Reflection Band 2 Wavelength Range (nm)±10 | |
| 1540~1560 | |
| 1480~1500 | |
| 1540~1560 | |
| Pass Channel | |
| Reflect Channel | |
| ≤0.6 | |
| Pass Channel | |
| ≤0.8 | |
| Insertion Loss Variation(dB) | |
| <0.3 | |
| Isolation(dB) | |
| Pass Channel | |
| >15 | |
| Pass Channel | |
| >30 | |
| Inertion Loss Temperature Sensitivity(dB/ºC) | |
| <0.005 | |
| Polarization Dependent Loss(dB) | |
| <0.1 | |
| Polarization Mode Dispersion(ps) | |
| <0.1 | |
| Directivity(dB) | |
| >50 | |
| Return Loss(dB) | |
| >50 | |
| Maximum Power Handling(mW) | |
| Maximum Power Handling(mW) | |
| Opterating Temperature(ºC) | |
| -20~+70 | |
| Storage Temperature(ºC) | |
| -40~+85 | |
xxxxxxx.
