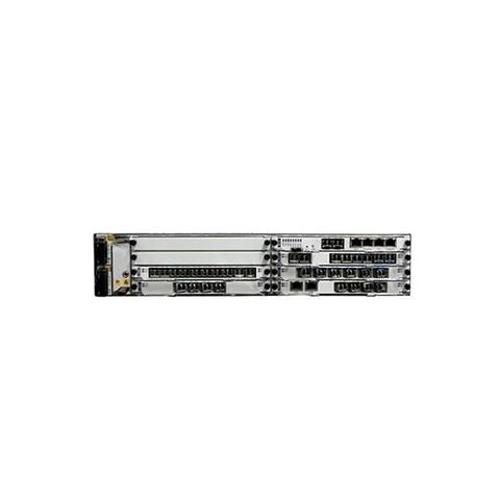

OSN 1800 CWDM DWDM fiber optic communication equipment
Short Description:
| Switch | |
| Optical | Implements the add/drop multiplexing of any 2 wavelengths or 4 and 8 adjacent wavelengths in the OTM and the OADM. |
| Electrical | Inter-board cross-connections of Any services at a rate lower than 1.25 Gbit/s and 10GE LAN services are supported. Intra-board cross-connections of Any services at a rate lower than 2.5 Gbit/s are supported, and intra-board cross-connections of VC-4 or VC-12 and ODU0/ODU1/ODUflex/ODU2 services are supported. |
| Wavelength | DWDM: On a network that contains only OptiX OSN 1800, a 16-channel DWDM system is supported. On a hybrid network that contains OptiX OSN 1800 and OptiX OSN 8800, a 40-channel DWDM system is supported if OBU boards are used on the network. CWDM: 8-ch(max) |
| Max. rate per channel | 10 Gbit/s (OTU2) |
| Service types supported | SDH service, PDH service, OTN service, Ethernet service, CPRI service, SAN service, SONET service, PON service, Video service and others |
| Line rate | 2.5 Gbit/s, 10 Gbit/s |
| Pluggable optical/electrical module | Optical module: SFP, XFP, SFP+, TXFP Electrical module: GE SFP, FE SFP |
| Topology | Point to point, Chain, Star, Ring |
| Redundancy and Protection | |
| Equipment level protection | Power Redundancy, Fan Redundancy |
| Network level protection (OTN) | Client 1+1 Protection, Intra-Board 1+1 Protection, ODUk SNCP, Optical line protection, SW SNCP, LPT |
| Network level protection (Ethernet) | ERPS, LAG, LPT(Service-based), MSTP, STP and RSTP, VLAN SNCP |
| Maintenance | |
| ETH OAM | Ethernet service OAM: supports continuity check (CC), loopback (LB), linktrace (LT), and OAM_Ping. Ethernet port OAM: supports OAM auto-discovery, link performance monitoring, remote loopback, and self-loop detection. |
| Synchronization | Synchronous Ethernet clock IEEE 1588v2 SDH clock External time source (1PPS+TOD) |
| Standard working voltage | -48 V/-60 V DC power input 100 V to 240 V AC power input |
| Installation mode | 19-inch cabinet or 19-inch open rack ETSI 300mm cabinet Wall- or Pole-mount |
| MTTR | 4 hours |
| MTBF | 61.44 years |
