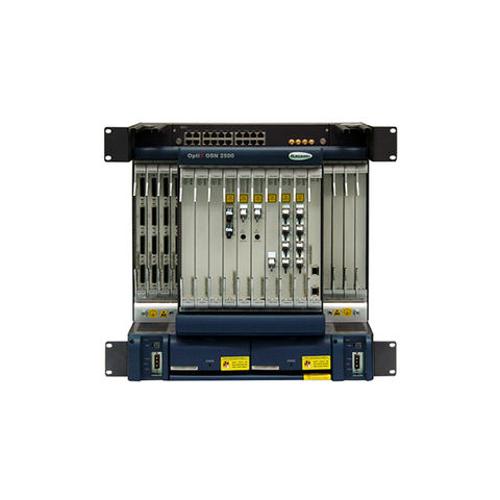

OSN 2500 Telecom Transmission Synchronous Generator SDH STM-16
Short Description:
| Nominal bit rate | 9953280 kbit/s |
| Line code type | NRZ |
| Application code | |
| I-64.1 | |
| I-64.2 | |
| S-64.2b | |
| L-64.2b (BA) | |
| P1L1-2D2 | |
| Le-64.2 | |
| Ls-64.2 | V-64.2b (BA+PA+DCU) |
| Transmission distance (km) | |
| 0 to 2 | |
| 0 to 25 | |
| 2 to 40 | |
| 35 to 80 | |
| 40 to 80 | |
| 35 to 60 | |
| 55 to 80 | 80 to 120 |
| Operating wavelength range (nm) | |
| 1290 to 1330 | |
| 1530 to 1565 | |
| 1530 to 1565 | |
| 1530 to 1565 | |
| 1530 to 1565 | |
| 1530 to 1565 | |
| 1530 to 1565 | 1550.12 |
| Type of fiber | Single-mode LC |
| Launched optical power range (dBm) | |
| -6 to -1 | |
| -5 to -1 | |
| -1 to 2 | |
| Without the BA: -4 to 2 | |
| 0 to 4 | |
| 0 to 4 | |
| 3 to 7 | Without the BA, PA, or DCU: -4 to -1 |
| With the BA: 13 to 15 | |
| With the BA: 13 to 15 | |
| Receiver sensitivity (dBm) | |
| -11 | |
| -14 | |
| -14 | |
| -14 | |
| -24 | |
| -21 | |
| -21 | Without the BA, PA, or DCU: -14 |
| Minimum overload (dBm) | |
| -1 | |
| -1 | |
| -1 | |
| -1 | |
| -7 | |
| -8 | |
| -8 | -1 |
| Dispersion tolerance (ps/nm) | |
| 6.6 | |
| 500 | |
| 800 | |
| 1600 | |
| 1600 | |
| 1200 | |
| 1600 | 2400 |
| Minimum extinction ratio (dB) | |
| 6 | |
| 8.2 | |
| 8.2 | |
| 8.2 | |
| 9 | |
| 8.2 | |
| 8.2 | 8.2 |
| Maximum -20 dB spectral width (nm) | |
| 1 | |
| 1 | |
| 1 | |
| 1 | |
| 1 | |
| 1 | |
| 1 | 1 |
| Minimum side mode suppression ratio (dB) | |
| 30 | |
| 30 | |
| 30 | |
| 30 | |
| 30 | |
| 30 | |
| 30 | 30 |
