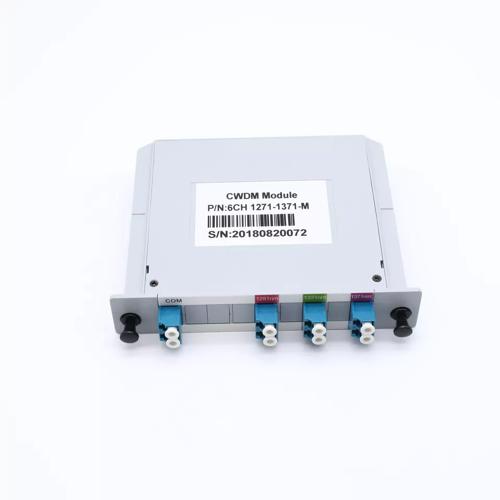

Factory Price LGX Type cwdm edfa wdm optical node with wdm 4 6 8 Channel Cwdm Mux/demux Filter fiber optical network
Short Description:
| ITEM | |
| Unit | Technical data |
| Channel bandwidth | |
| nm | 1271 |
| Central wavelength accuracy | |
| nm | ±1.5 |
| Channel bandwidth | |
| nm | ±6.5 |
| Transmission insertion loss | |
| dB | ≤0.7 |
| Reflection insertion loss | |
| dB | ≤0.5 |
| AdjacentIsolation | |
| dB | ≥30 |
| Non AdjacentIsolation | |
| dB | ≥40 |
| Transmission Isolation | |
| dB | ≥13 |
| Channel ripple | |
| nm | ≤0.5 |
| Insertion loss thermal sensitivity | |
| dB/℃ | ≤0.007 |
| Directivity | |
| dB | ≥55 |
| Return Loss | |
| dB | ≥45 |
| PDL | |
| dB | ≤0.1 |
| Max. Power | |
| mw | 300 |
| Operating Temperature | |
| ℃ | -5~65 |
| Storage Temperature | |
| ℃ | -40~85 |
| Fiber type | |
| - | G657A1 |
| Fiber length | |
| m | 1.0 |
| Package dimension | |
| mm | 90*20*10 |
| Connector type | |
| - | LC/PC |
