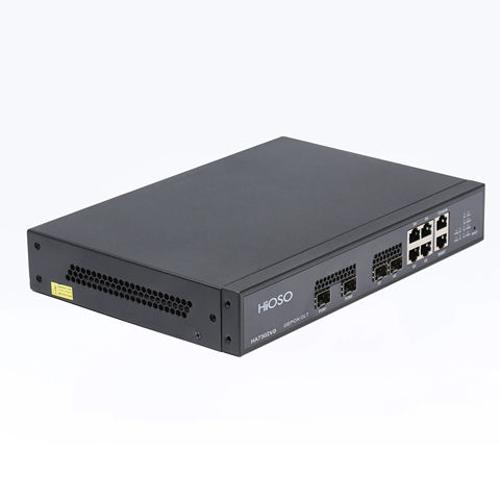

HA7302VD-ADC pizza box type 2 SFP PON ports EPON OLTs. It has AC+DC dual-mode power supply
Short Description:
Parameter | Specification |
Operating wavelength | 1310(RX) /1490(TX) |
Optical power | +2.5 ~ +7dBm |
Receiving sensitivity | -30dBm |
Max distance | 20km |
Max splitter ratio | 1:64 |
Capacity | 2 PON, maximum 128pcs ONU |
MAC | 8k |
Uplink port | 2 1000M SFP ports + 4 1000M LAN RJ45 ports |
PON port | 2 SFP 1000M fiber ports |
Control port | 1 10/100M MGMT NMS RJ45 port;1 Console(RJ45), to debug the device; |
MTBF | 100,000 hours |
EPON traits | Support IEEE802.3ah |
Support DBA with minimum1Kbps granularity adjustable | |
Support 1Gbps up link and down link symmetrical bandwidth | |
Support AES-128 encryption to each Logical Link Identifier | |
Support powerful OAM function, implement telnet management, maintenance and upgrade | |
Support auto discovery and auto register of ONU (real-time operation) | |
Other functions | Support IGMPv1/v2, IGMP Snooping and IGMP ProxySupport remote config onu, remote upgrade ;Real time alarm |
Protocols supported | Support IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3z |
Support IEEE802.1Q VLAN、IEEE802.1d Spanning Tree | |
Support IEEE 802.1P QoS、IEEE802.3X Flow Control | |
Support IEEE802.3ad Trunk、IEEE802.1W RSTP | |
Network management | Support GUI management based on SNMP |
Support WEB/CLI, Support inband and outband management |
