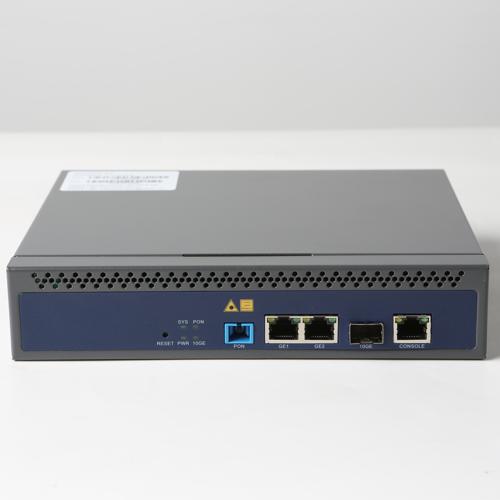

GPON olt mini 1 pon web snmp olt gpon 1 ports with 1 C++ pon modules
Short Description:
| Parameter | Specification |
| PON standard. | GPON ITU-T G.984.x, G.988 |
| PON interface | 1*GPON SFP Ports (Class C+), Receiving sensitivity: ≤ -30dBm(Saturation Optical -12dBm). Power,Transmitting optical power: +3～+7dBmTransmission distance: 20KM. Max splitting ratio1:128 |
| Upstream 2.488G Downstream 1.244G | |
| Wavelength | Tx1310nm, Rx 1490nm |
| Uplink | 2*GE(copper Ethernet) |
| 1*10GE (SFP+) | |
| Management Ports | 1*CONSOLE port 1*USB Type-C |
| Management Mode | SNMP, Telnet, CLI, WEB |
| PON Function | Tcont DBA In compliant with ITU-T984.x standardUp to 20KM transmission DistanceSupport data encryption, multi-cast, port VLAN, separation, etcSupport ONT auto-discovery/link detection/remote upgrade of softwareSupport VLAN division and user separation to avoid broadcast stormSupport power-off alarm function, easy for link problem detectionSupport broadcasting storm resistance function |
| L2 Switch function | 1K Mac addressSupport 4096 VLANsSupport port VLANSupport VLAN tag/Un-tag, VLAN transparent transmissionSupport storm control based on portSupport port isolationSupport port rate limitationSupport 802.1D and 802.1WAccess control listIEEE802.x flowcontrolPort stability statistic and monitoring |
| Management function | Telnet,CLI,WEB;Port Status monitoring and configuration managementOnline ONTconfiguration and managementUser management Alarm management |
| Backplane Bandwidth (Gbps) | 16 |
| Port Forwarding Rate(Mpps) | 23.808 |
| Operating condition | Operating temp: 0 ~ +50℃ |
| Storing condition | Storing temp: -40 ~ +85℃ |
| Humidity | 5~90%(non-condensing) |
| Power Supply | DC 12V/2.5AAC 85~264V, 47/60Hz(Optional) |
| Power consumption | ≤45W |
| Dimension | 224mm*199mm*43.6mm (L×W×H） |
| Net weight | 1.1Kg |
