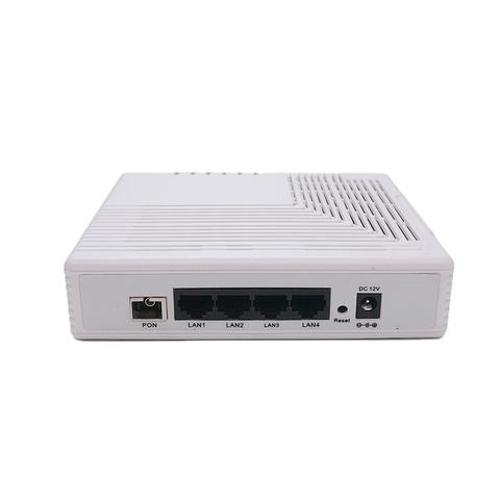

Wifi onu 1GE + 3FE + WIFI EPON wifi onu supply most brand ffth olt
Short Description:
| Parameter | |
| Specification | |
| Interface | |
| PON Interface | 1 GEPON optical interfaceMeet 1000BASE-PX20 standardSymmetric 1.25Gbps upstream/downstream SC single-mode fibersplit ratio: 1:64Transmission distance 20KM |
| User Interface | 1*10/100/1000M RJ45, 3*10/100M auto-negotiationnFull/half duplex modeRJ45 connectorAuto MDI/MDI-X 100m distance |
| Power Interface | 12V DC Power supply |
| Performance Parameters | |
| PON Optical Parameter | Wavelength: Tx 1310nm, Rx1490nmTx Optical Power: -1～4dBmRx Sensitivity: -27dBmSaturation Optical Power: -3dBmConnector Type: SCOptical Fiber: 9/125ɥm single-mode fiber |
| Data TransmissionParameter | PON Throughput: Downstream 950Mbps; Upstream 930MbpsEthernet: 100MbpsPacket Loss Ratio: <1*10E-12latency: <1.5ms |
| Network Management | |
| Management Mode | Support IEEE802.3 QAM, ONU can be remotely managed by OLTSupport Remote management through SNMP and TelnetLocal management |
| Management Function | Status monitor, Configuration management, Alarm management, Log management |
| Physical Features | |
| Shell | Plastic casing |
| Power | External 12VPower consumption: < 5.5W |
| Dimension and Weight | Item Dimension：146mm(length) × 105mm(width)× 35mm(height)Item weight：0.35kg |
| Environmental Specifications | Operating temperature: 0 to 50 oCStorage temperature: -40 to 85 oCOperating humidity: 10% to 90% (Non-condensing)Storage humidity: 5% to 95% (Non-condensing) |
| WIFI SPECIFICATION | |
| Performance parameters | |
| Operating Mode | Router or bridge |
| Throughput | IEEE 802.11b: 11MbpsIEEE 802.11g: 54 MbpsIEEE 802.11n: 135Mbps |
| Frequency | 2.412 ~ 2.472 GHz |
| Modulation | DSSS , CCK and OFDM |
| Coding | BPSK, QPSK, 16QAM and 64QAM |
| Encryption Mode | 802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK) |
